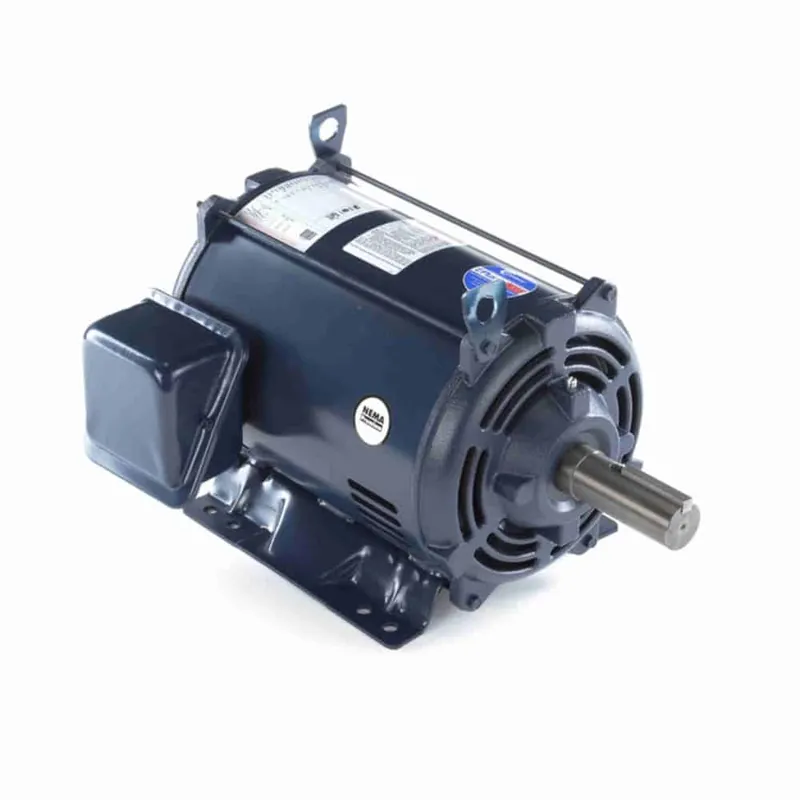

25HP 3PH 284T 4P ODP 1765 230/460V

Description

Product Information

Brand Century
Mfr # E514M2
Wright’s # CEN E514M2
Country of Origin MEX

Specifications

C Dim 24.22″
Electrical Type Three Phase
Enclosure ODP
Frame 284T
Frequency 60 Hz
HP 25 HP
HP2 25 HP
Insulation Class F
kW 18.7kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 3
Rated Current 61/30.5
Rated Voltage 230/460
Rotation Counterclockwise
RPM 1765
Service Factor 1.15
Shaft Diameter 1.875″
Speed 1765
Starting Method
