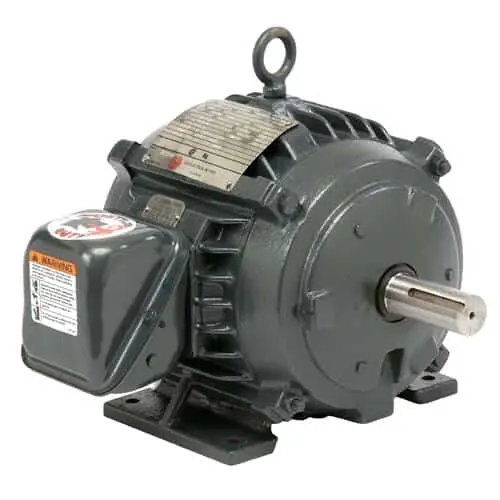

20HP 3PH 256T 1800 TEAO 230/460V SG CT

Description

Product Information

Brand US Motors
Mfr # CVW20V2B6
Wright’s # USM CVW20V2B6
Country of Origin MEX

Specifications

C Dim 22.3″
Electrical Type Polyphase
Enclosure TEAO
Frame 256T
Frequency 60 Hz
HP 20 HP
HP2 20 HP
Insulation Class F
kW 14.91kW
MaAmbient 40°C
Mounting Type HORZ-FOOTED
Number of Poles 4
Number of Speeds 1
Overload Protection None
Phase 3
Rated Current 47/23.7
Rated Voltage 230/460V
RPM 1775
Service Factor 1.15
