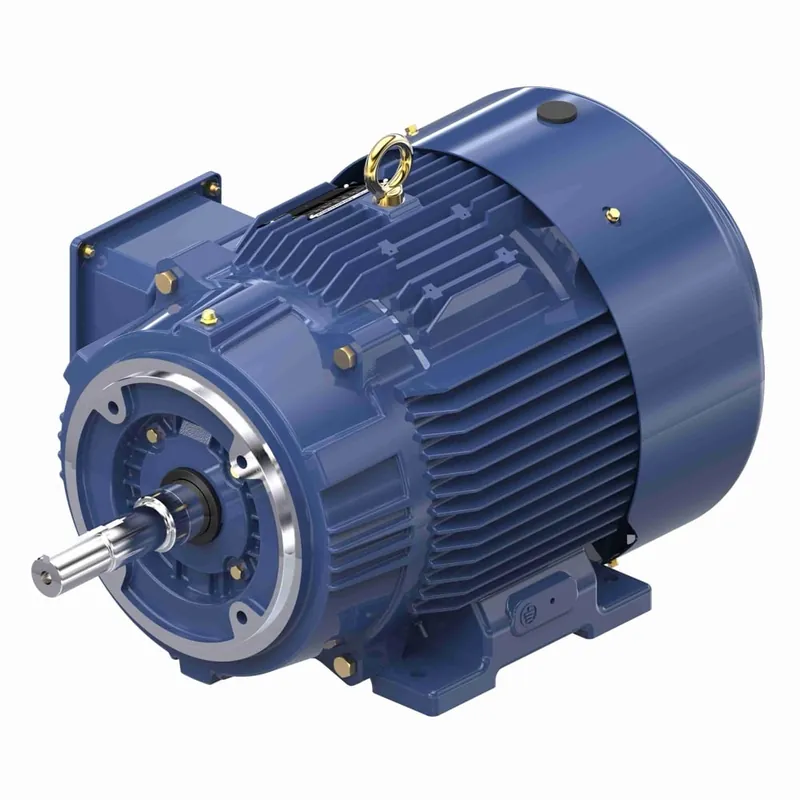

20HP 3PH 256JM 2P TEFC 3600 230/460V WB

Description

Product Information

Brand Marathon
Sub-Brand Globetrotter®
Mfr # GT3124A
Wright’s # MAR GT3124A
Country of Origin MEX

Specifications

C Dim 27.89″
Electrical Type Squirrel Cage Inverter Rated
Enclosure ODP
Full Load Efficiency 91
Frame 256JM
Frequency 60 Hz
HP 20 HP
HP2 20 HP
Insulation Class F
kW 14.9kW
Material Cast Iron
MaAmbient 40°C
Mounting Type Rigid Base
Number of Poles 2
Number of Speeds 1
Overload Protection No Protection
Phase 3
Rated Current 47.5/23.7 & 43.5/21.7
Rated Voltage 230/460
Rotation Reversible
RPM 3540
Service Factor 1.15
Shaft Diameter 1.375″
Speed 3540 & 2945
Starting Method
