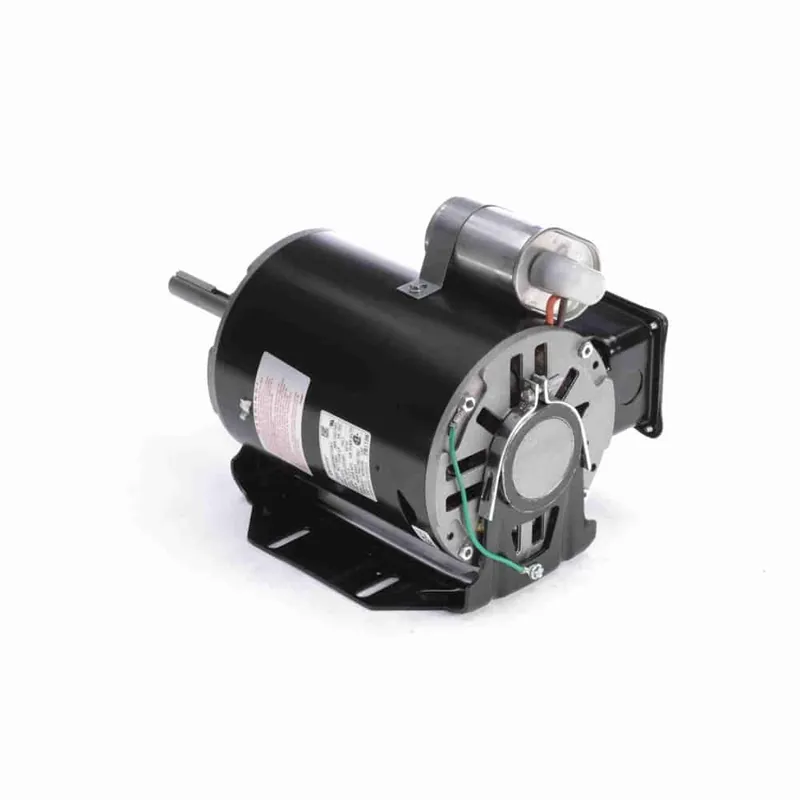

1HP PSC 56Y TE 1075 208-230/460V 5uF-inc CF

Description

Product Information

Brand Century
Mfr # FB1106
Wright’s # CEN FB1106
Country of Origin MEX

Specifications

C Dim 12.83″
Electrical Type Permanent Split Capacitor
Enclosure TEAO
Frame 56Y
Frequency 60 Hz
HP 1 HP
HP2 1 HP
Insulation Class B
kW 0.75kW
Material Rolled Steel
MaAmbient 60°C
Number of Poles 6
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 7.6/3.8
Rated Voltage 208-230/460
Rotation Reversible
RPM 1075
Service Factor 1
Shaft Diameter 0.625″
Speed 1075
Starting Method
