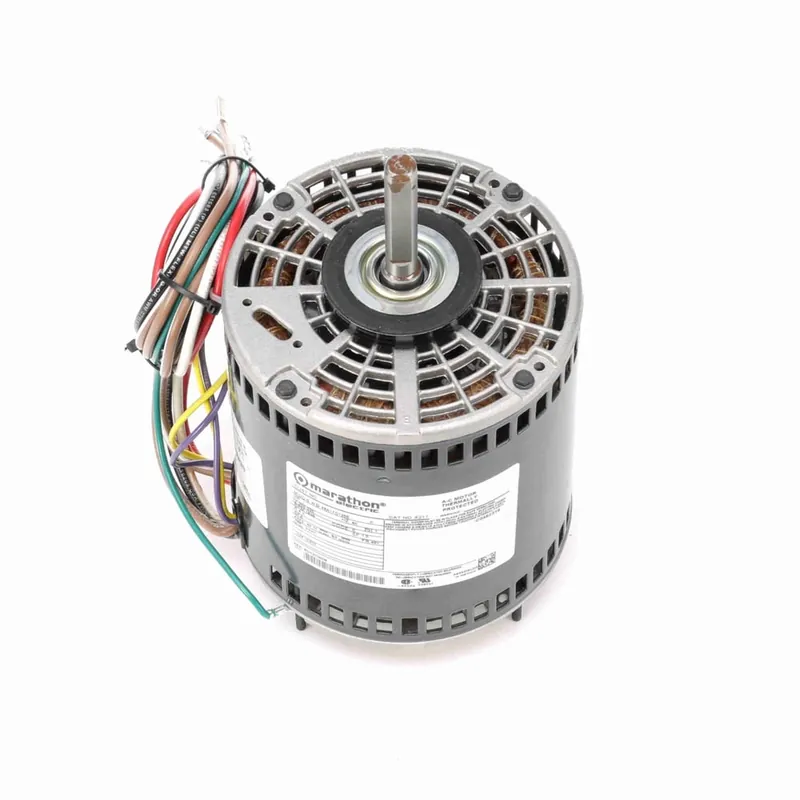

1HP PSC 48Y 2spd 1625 208-230V NB BM

Description

Product Information

Brand Marathon
Mfr # X211
Wright’s # MAR X211
Country of Origin MEX

Specifications

C Dim 9.75″
Electrical Type Permanent Split Capacitor
Enclosure ODP
Full Load Efficiency 64
Frame 48Y
Frequency 60 Hz
HP 1 HP
HP2 1 HP
Insulation Class B
kW 0.75kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Round Belly Band
Number of Poles 4
Number of Speeds 2
Overload Protection Automatic
Phase 1
Rated Current 6.2
Rated Voltage 208-230
Rotation Reversible
RPM 1625
Service Factor 1
Shaft Diameter 0.5″
Speed 1625
Starting Method
