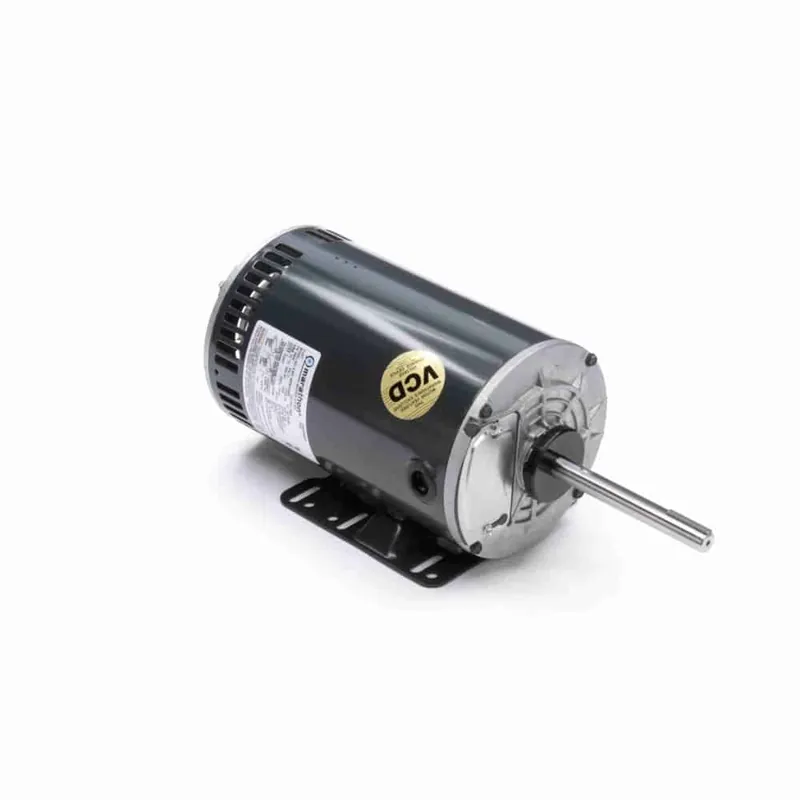

1HP 3PH 6.5″ OAO 850 208-230/460V AOL WB 56HZ RF

Description

Product Information

Brand Leeson
Mfr # X528
Wright’s # LSN X528
Country of Origin MEX

Specifications

C Dim 17.06″
Electrical Type Squirrel Cage Induction Run
Enclosure OAO
Full Load Efficiency 74.5
Frame 56HZ
Frequency 60 Hz
HP 1 HP
HP2 1 HP
Insulation Class H
kW 0.75kW
Material Rolled Steel
MaAmbient 70°C
Mounting Type Rigid Base
Number of Poles 8
Number of Speeds 1
Overload Protection Automatic
Phase 3
Rated Current 5.1-5.3/2.65 & 4.8/2.4
Rated Voltage 208-230/460
Rotation Reversible
RPM 850
Service Factor 1
Shaft Diameter 0.625″
Speed 850 & 715
Starting Method
