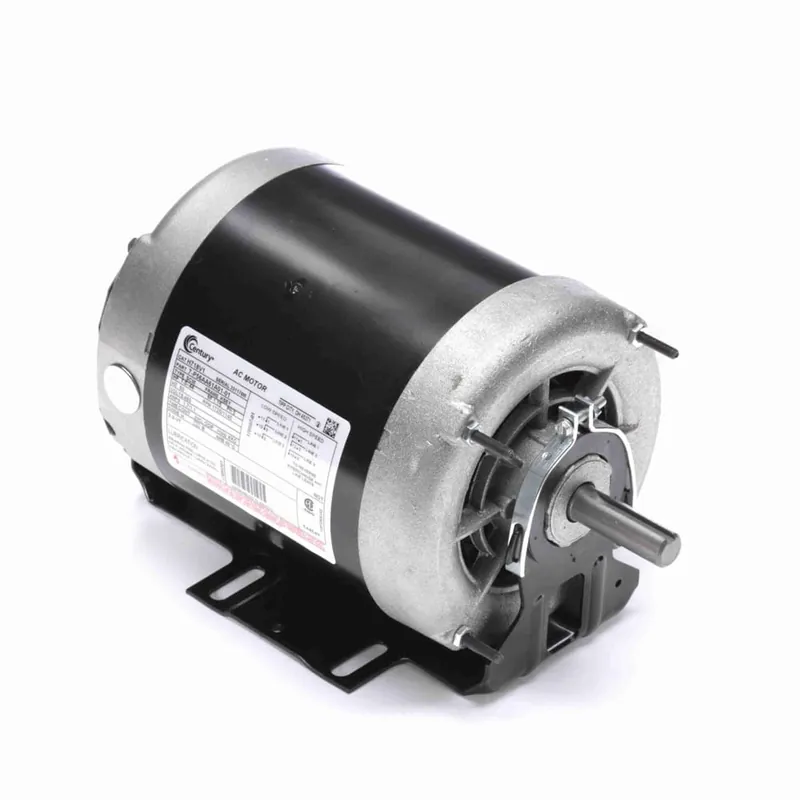

1HP 3PH 56Y ODP 2spd 1725 460V BM

Description

Product Information

Brand Century
Mfr # H718V1
Wright’s # CEN H718V1
Country of Origin MEX

Specifications

C Dim 11.07″
Electrical Type Polyphase, Induction Type, Multi-Speed
Enclosure ODP
Frame 56Y
Frequency 60 Hz
HP 1 HP
HP2 1-.44 HP
Insulation Class B
kW 0.75kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 4/6
Number of Speeds 2
Overload Protection No Protection
Phase 3
Rated Current 1.7/1.1
Rated Voltage 460
Rotation Reversible Counterclockwise
RPM 1725
Service Factor 1.15
Shaft Diameter 0.625″
Speed 1725/1140
Starting Method
