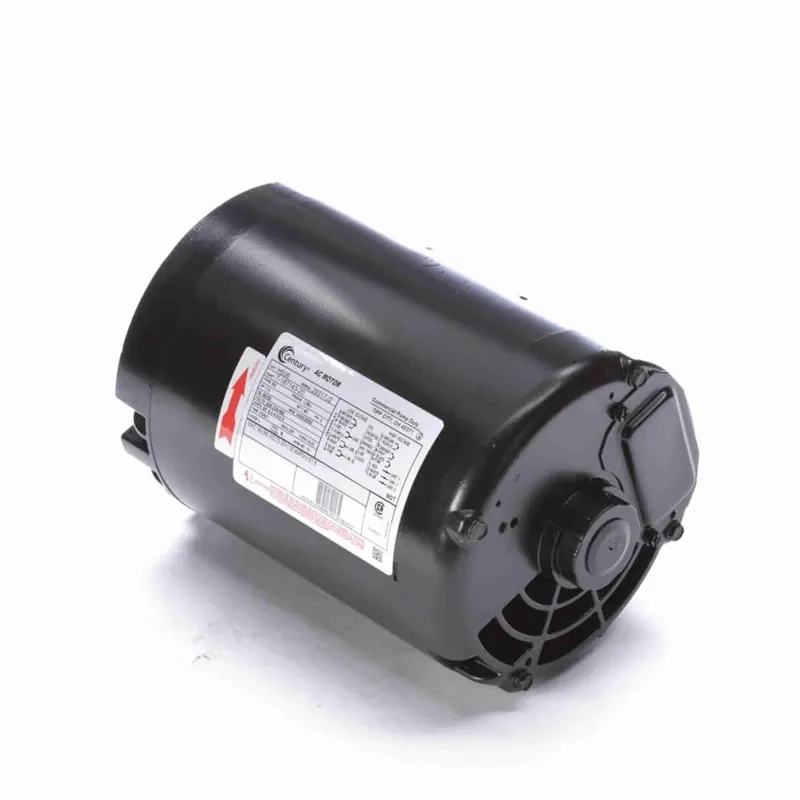

1HP 3PH 56J 2P ODP 3450 208-230/460V

Description

Product Information

Brand Century
Mfr # H506
Wright’s # CEN H506
Country of Origin CHN

Specifications

C Dim 11.85″
Electrical Type Polyphase, Induction Type, Single Or Dual Voltage
Enclosure ODP
Frame 56J
Frequency 60 Hz
HP 1 HP
HP2 1 HP
Insulation Class B
kW 0.75kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 2
Number of Speeds 1
Overload Protection No Protection
Phase 3
Rated Current SF 4.3-4.0/2.0
Rated Voltage 208-230/460
Rotation Reversible Clockwise
RPM 3450
Service Factor 1.4
Shaft Diameter 0.625″
Speed 3450/2850
Starting Method
