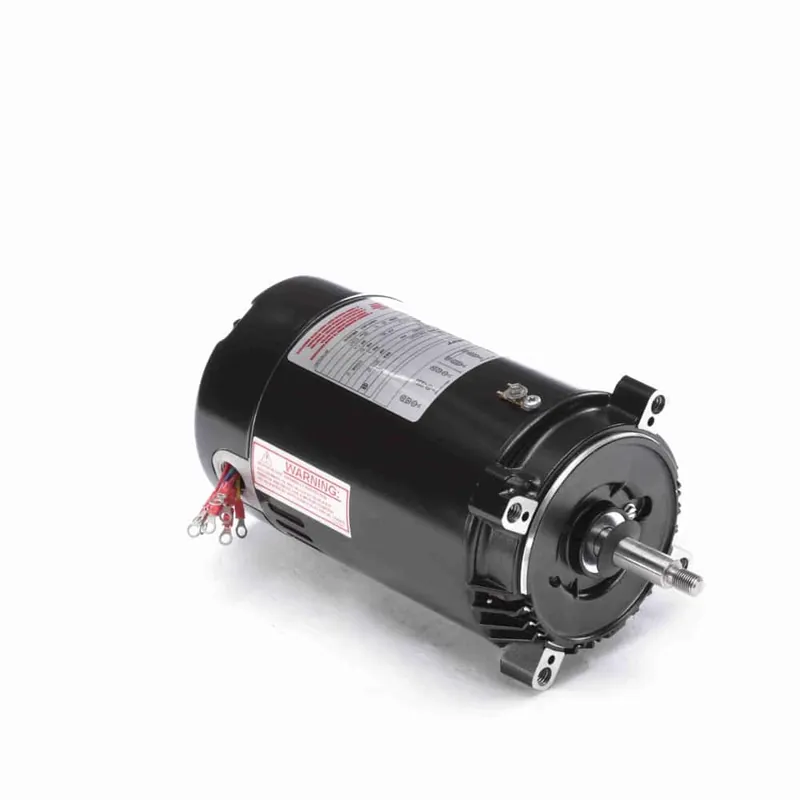

1HP 3PH 56J 2P ODP 3450 208-230/460V UL1081

Description

Product Information

Brand Century
Mfr # T3102
Wright’s # CEN T3102
Country of Origin MEX

Specifications

C Dim 12.26″
Electrical Type Polyphase
Enclosure ODP
Frame 56J
Frequency 60 Hz
HP 1 HP
HP2 1 HP
Insulation Class B
kW 0.75kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 2
Number of Speeds 1
Overload Protection No Protection
Phase 3
Rated Current 3.2/1.6
Rated Voltage 208-230/460
Rotation Counterclockwise Pump End
RPM 3450
Service Factor 1.4
Shaft Diameter 0.625″
Speed 3450
Starting Method
