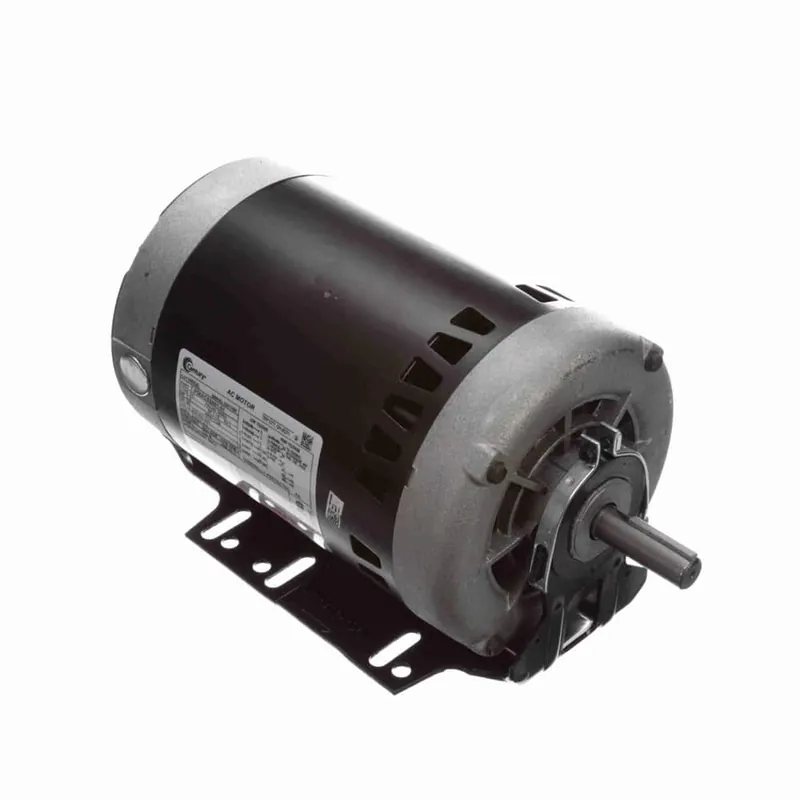

1HP 3PH 56H ODP 1800 200-230/460V BM

Description

Product Information

Brand Century
Mfr # H852L
Wright’s # CEN H852L
Country of Origin MEX

Specifications

C Dim 12.69″
Electrical Type Polyphase, Induction Type, Single Or Dual Voltage
Enclosure ODP
Frame 56H
Frequency 60 Hz
HP 1 HP
HP2 1 HP
Insulation Class B
kW 0.75kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection Thermally Protected
Phase 3
Rated Current 2.0/3.7-4.0
Rated Voltage 200-230/460
Rotation Reversible Counterclockwise
RPM 1725
Service Factor 1.15
Shaft Diameter 0.625″
Speed 1800
Starting Method
