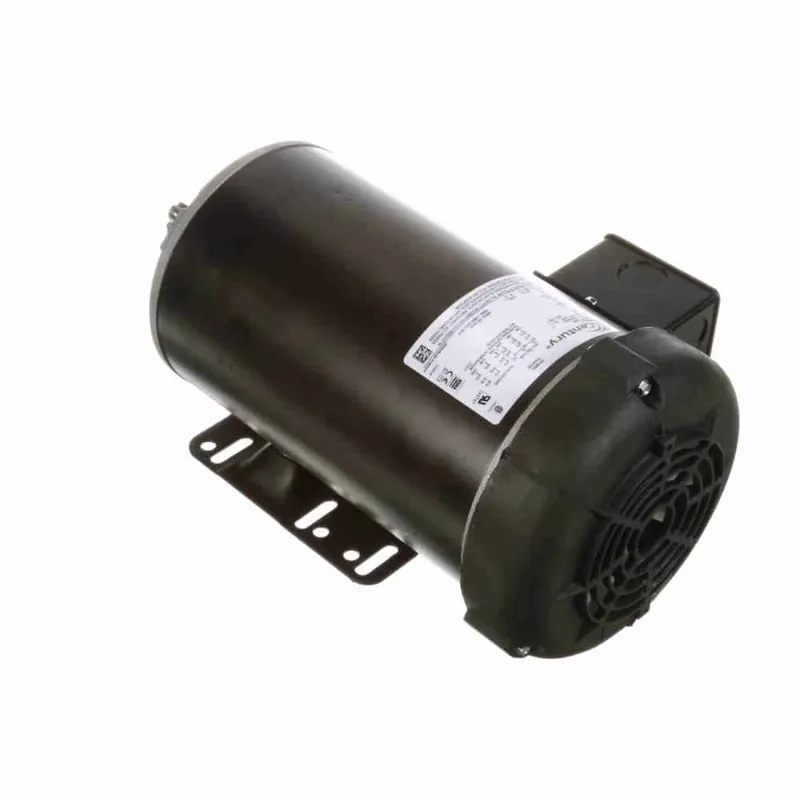

1HP 3PH 56H 4P TEFC 1140 230/460V

Description

Product Information

Brand Century
Mfr # H528ES
Wright’s # CEN H528ES
Country of Origin MEX

Specifications

C Dim 15.33″
Electrical Type Three Phase
Enclosure TEFC
Full Load Efficiency 82.5
Frame 56H
Frequency 60 Hz
HP 1 HP
HP2 1 HP
Insulation Class B
kW 0.75kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 3
Rated Current 3.8/1.9
Rated Voltage 230/460
Rotation Reversible
RPM 1140
Service Factor 1.15
Shaft Diameter 0.625″
Speed 1140
Starting Method
