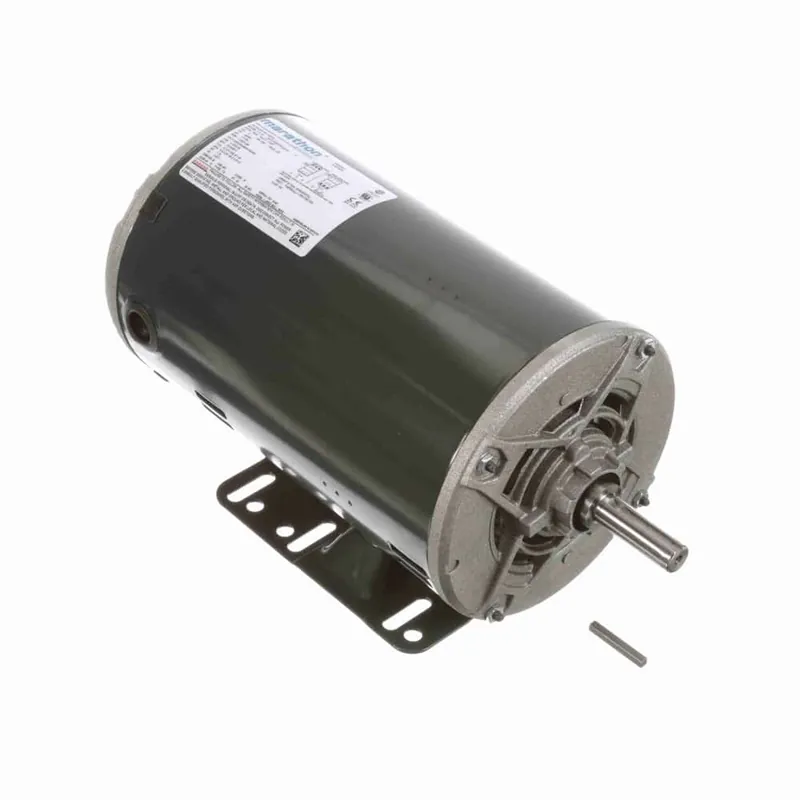

1HP 3PH 56H 4P DP 1725 208-230/460V AOL

Description

Product Information

Brand Leeson
Sub-Brand XRI® General Purpose
Mfr # G921A
Wright’s # LSN G921A
Country of Origin MEX

Specifications

C Dim 13.99″
Electrical Type Squirrel Cage Induction Run
Enclosure DP
Full Load Efficiency 83.5
Frame 56H
Frequency 60 Hz
HP 1 HP
HP2 1 HP
Insulation Class B
kW 0.75kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Rigid Base
Number of Poles 4
Number of Speeds 1
Overload Protection Automatic
Phase 3
Rated Current 3.2-3/1.5 & 2.9/1.45
Rated Voltage 208-230/460
Rotation Reversible
RPM 1725
Service Factor 1.15
Shaft Diameter 0.625″
Speed 1725 & 1425
Starting Method
