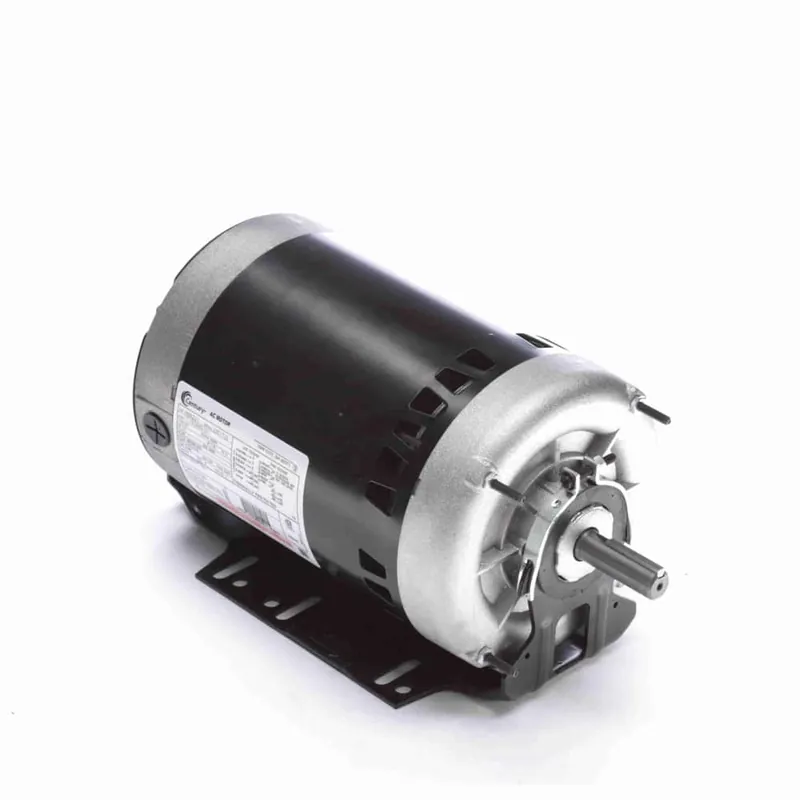

1HP 3PH 56H 2P ODP 3450 200-230/460V AOL

Description

Product Information

Brand Century
Mfr # H842V1
Wright’s # CEN H842V1
Country of Origin MEX

Specifications

C Dim 12.69″
Electrical Type Polyphase, Induction Type, Single Or Dual Voltage
Enclosure ODP
Frame 56H
Frequency 60 Hz
HP 1 HP
HP2 1 HP
Insulation Class B
kW 0.75kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 2
Number of Speeds 1
Overload Protection Thermally Protected
Phase 3
Rated Current 1.8/3.5-3.6
Rated Voltage 200-230/460
Rotation Reversible Counterclockwise
RPM 3450
Service Factor 1.4
Shaft Diameter 0.625″
Speed 3450
Starting Method
