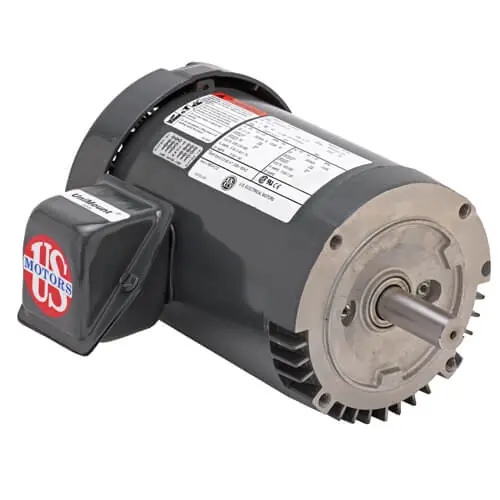

1HP 3PH 56C 3600 TEFC 208-230/460V NB

Description

Product Information

Brand US Motors
Mfr # U1P1DCR
Wright’s # USM U1P1DCR
Country of Origin MEX

Specifications

C Dim 13.1″
Electrical Type Polyphase
Enclosure TEFC
Frame 56C
Frequency 60/50 Hz
HP 1 HP
HP2 1 HP
Insulation Class F
kW 0.75kW
MaAmbient 40°C
Mounting Type HORZ-FOOTLESS
Number of Poles 2
Number of Speeds 1
Overload Protection None
Phase 3
Rated Current 2.9-2.7/1.4
Rated Voltage 208-230/460V
RPM 3523
Service Factor 1.25
