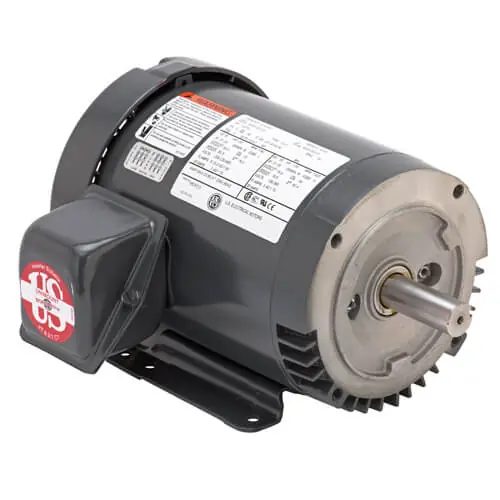

1HP 3PH 56C 1800 TEFC 208-230/460V WB

Description

Product Information

Brand US Motors
Mfr # U1P2DFC
Wright’s # USM U1P2DFC
Country of Origin MEX

Specifications

C Dim 13.1″
Electrical Type Polyphase
Enclosure TEFC
Frame 56C
Frequency 60Hz & 50Hz
HP 1 HP
HP2 1 HP
Insulation Class F
kW 0.75kW
MaAmbient 40°C
Mounting Type HORZ-FOOTED
Number of Poles 4
Number of Speeds 1
Overload Protection None
Phase 3
Rated Current 3.2-3.1/1.6
Rated Voltage 208-230/460V
RPM 1765
Service Factor 1.25
