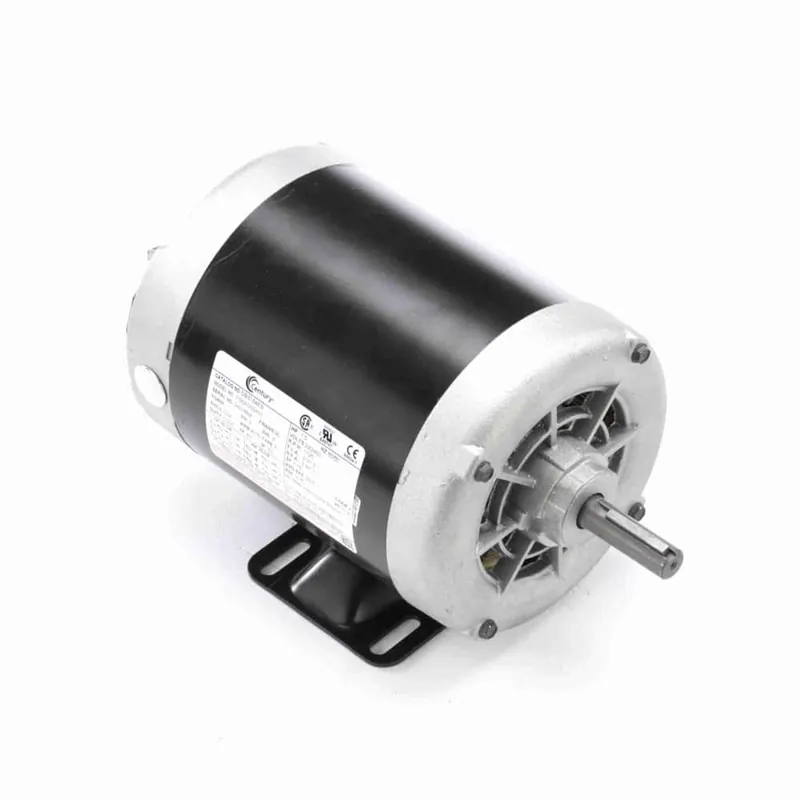

1HP 3PH 56 4P ODP 1725 230/460V

Description

Product Information

Brand Century
Mfr # OB3104ES
Wright’s # CEN OB3104ES
Country of Origin MEX

Specifications

C Dim 11.75″
Electrical Type Polyphase
Enclosure ODP
Full Load Efficiency 83.5
Frame 56
Frequency 60 Hz
HP 1 HP
HP2 1 HP
Insulation Class B
kW 0.75kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 3
Rated Current 3.0/1.5
Rated Voltage 230/460
Rotation Clockwise/Counterclockwise
RPM 1725
Service Factor 1.15
Shaft Diameter 0.625″
Speed 1725
Starting Method
