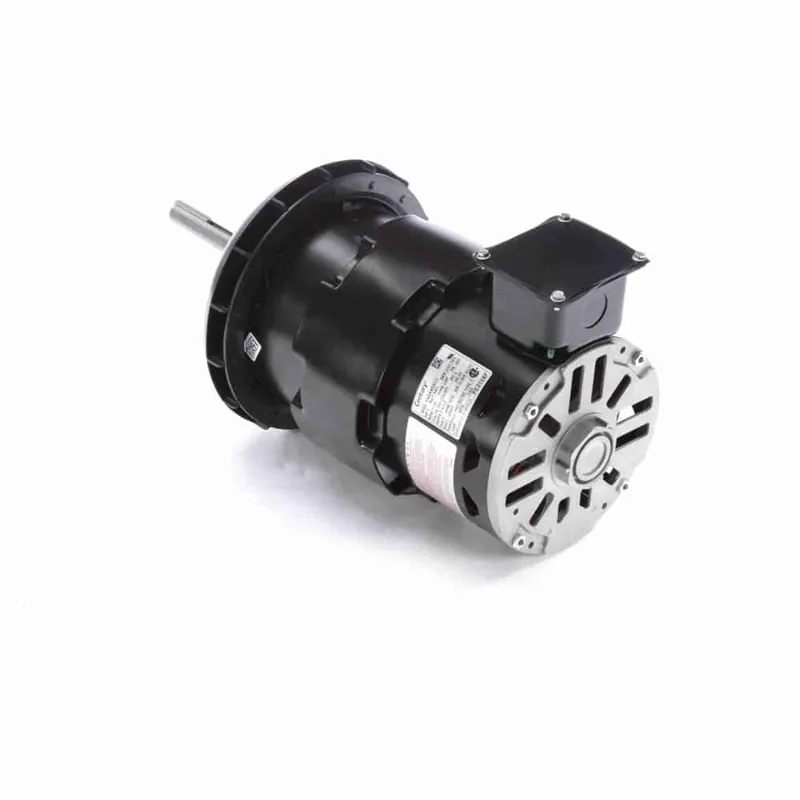

1HP 3PH 48Y ODP 1200 200-230/460V CF

Description

Product Information

Brand Century
Sub-Brand HEATMASTER®
Mfr # FC3106F
Wright’s # CEN FC3106F
Country of Origin MEX

Specifications

C Dim 15.44″
Electrical Type Three Phase
Enclosure ODP
Frame 48Y
Frequency 60 Hz
HP 1 HP
HP2 1 HP
Insulation Class F
kW 0.75kW
Material Rolled Steel
MaAmbient 70°C
Number of Poles 6
Number of Speeds 1
Overload Protection Automatic
Phase 3
Rated Current 5.6/2.8
Rated Voltage 200-230/460
Rotation Reversible
RPM 1140
Service Factor 1
Shaft Diameter 0.625″
Speed 1200
Starting Method
