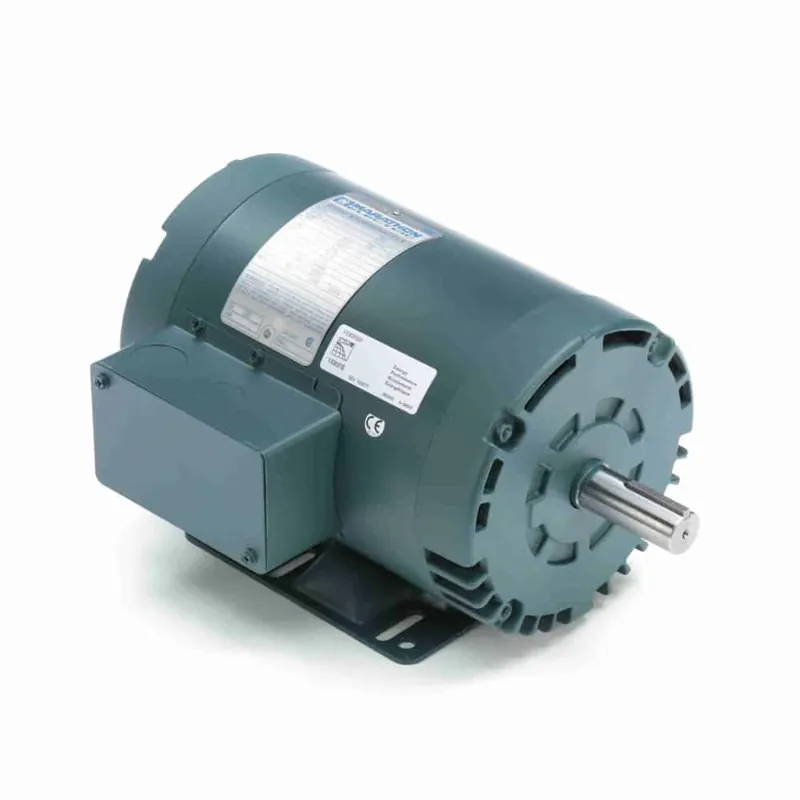

1HP 3PH 143T 4P DP 1760 230/460V TS

Description

Product Information

Brand Leeson
Mfr # U758
Wright’s # LSN U758
Country of Origin USA

Specifications

C Dim 12.12″
Electrical Type Squirrel Cage Induction Run
Enclosure DP
Full Load Efficiency 85.5
Frame 143T
Frequency 60 Hz
HP 1 HP
HP2 1 HP
Insulation Class F
kW 0.75kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Rigid Base
Number of Poles 4
Number of Speeds 1
Overload Protection Thermostat
Phase 3
Rated Current 3.2/1.6 & 2.8/1.4
Rated Voltage 230/460
Rotation Reversible
RPM 1760
Service Factor 1.15
Shaft Diameter 0.875″
Speed 1760 & 1450
Starting Method
