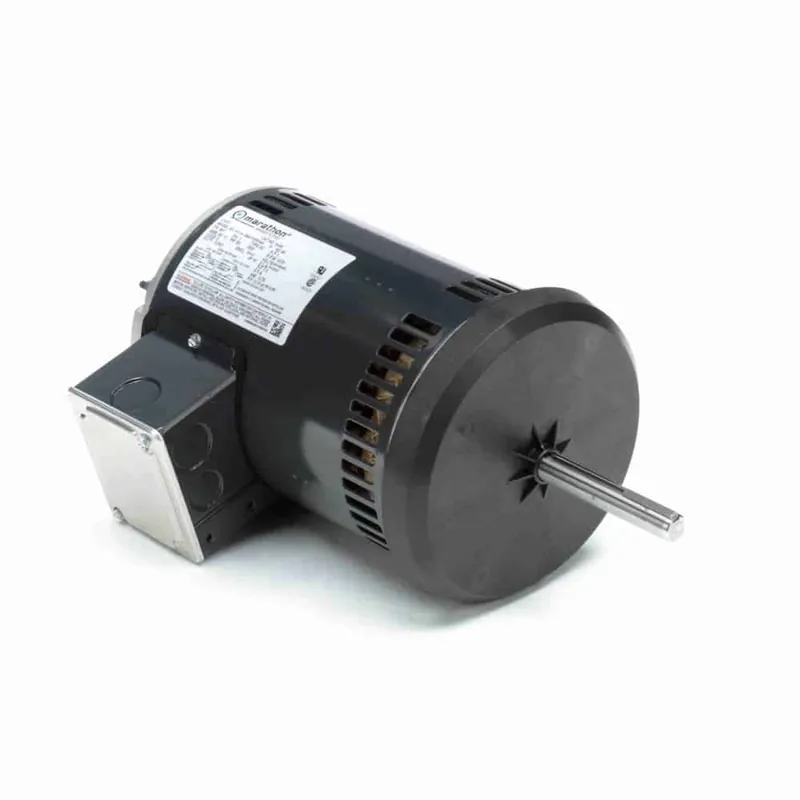

1HP 1PH 56Y 6P OAO 1075 PSC 200-230/460V AOL CF

Description

Product Information

Brand Leeson
Mfr # X448
Wright’s # LSN X448
Country of Origin MEX

Specifications

C Dim 14.47″
Electrical Type Permanent Split Capacitor
Enclosure OAO
Full Load Efficiency 73
Frame 56Y
Frequency 60 Hz
HP 1 HP
HP2 1 HP
Insulation Class B
kW 0.75kW
Material Rolled Steel
MaAmbient 60°C
Mounting Type Round Belly Band
Number of Poles 6
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 6.0-5.2/2.6
Rated Voltage 200-230/460
Rotation Selective Counterclockwise
RPM 1075
Service Factor 1
Shaft Diameter 0.625″
Speed 1075
Starting Method
