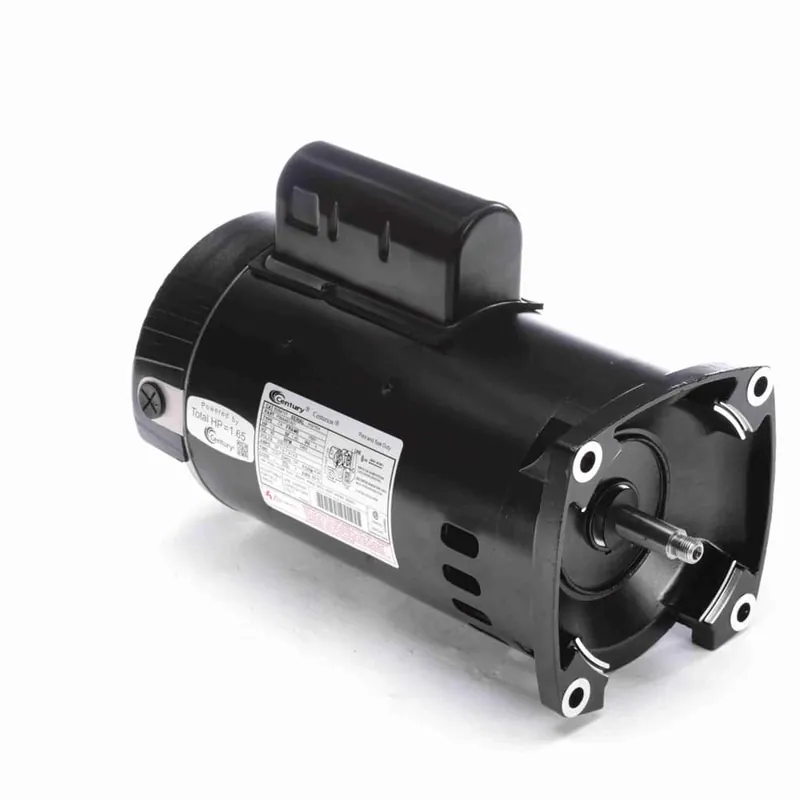

1HP 1PH 56Y 2P ODP 3450 115/208-230V AOL UL1081

Description

Product Information

Brand Century
Mfr # B2841V1
Wright’s # CEN B2841V1
Country of Origin CHN

Specifications

C Dim 13.4″
Electrical Type Permanent Split Capacitor, Single Or Dual Voltage
Enclosure ODP
Frame 56Y
Frequency 60 Hz
HP 1 HP
HP2 1 HP
Insulation Class F
kW 0.75kW
Material Rolled Steel
MaAmbient 50°C
Number of Poles 2
Number of Speeds 1
Overload Protection Thermally Protected
Phase 1
Rated Current SF 7.8-7.4/14.8
Rated Voltage 115/208-230
Rotation Counterclockwise Pump End
RPM 3450
Service Factor 1.65
Shaft Diameter 0.625″
Speed 3450
Starting Method
