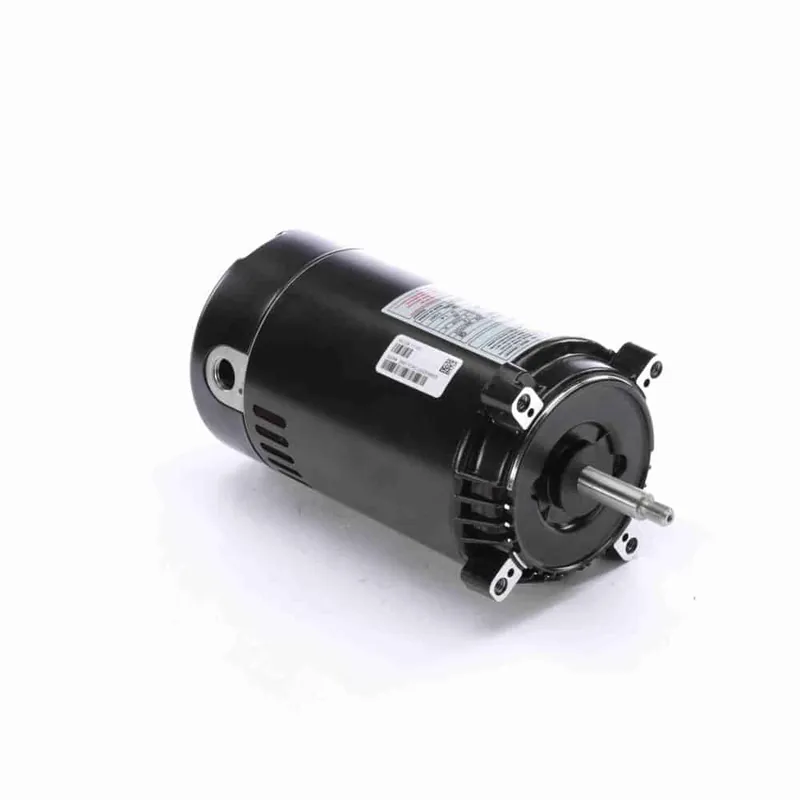

1HP 1PH 56J 2P ODP 3600 115/230V AOL JP

Description

Product Information

Brand Century
Mfr # T1102
Wright’s # CEN T1102
Country of Origin CHN

Specifications

C Dim 12.56″
Electrical Type Capacitor Start Induction Run
Enclosure ODP
Full Load Efficiency 71.5
Frame 56J
Frequency 60 Hz
HP 1 HP
HP2 1 HP
Insulation Class B
kW 0.75kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 2
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 6.2/12.4
Rated Voltage 115/230
Rotation Counterclockwise Pump End
RPM 3450
Service Factor 1.4
Shaft Diameter 0.625″
Speed 3600
Starting Method
