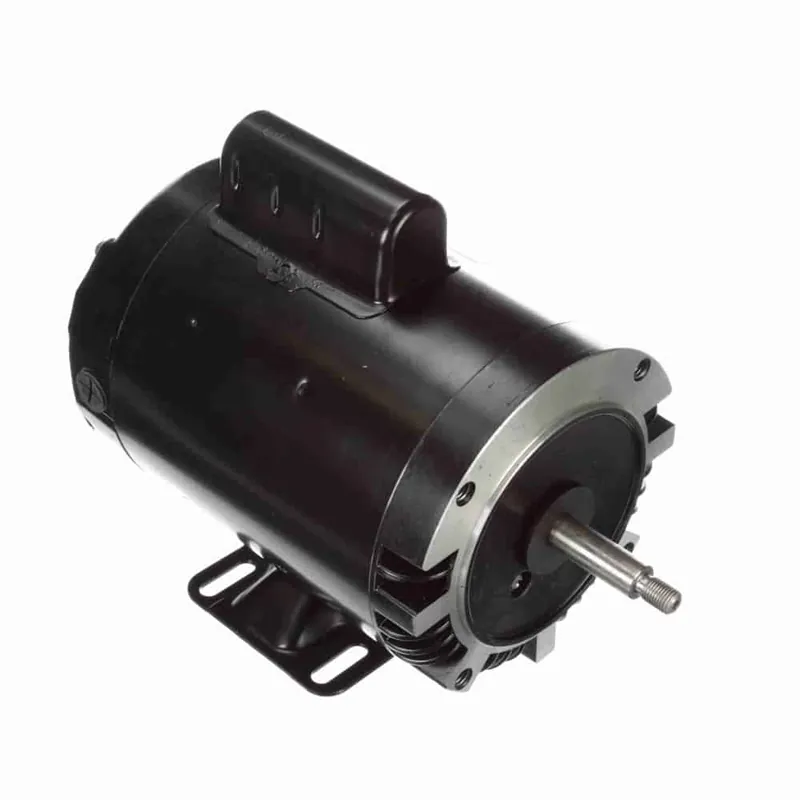

1HP 1PH 56J 2P ODP 3450 115/230V AOL

Description

Product Information

Brand Century
Mfr # B622
Wright’s # CEN B622
Country of Origin MEX

Specifications

C Dim 12.05″
Electrical Type Capacitor Start, Induction Run, Single Or Dual Voltage
Enclosure ODP
Frame 56J
Frequency 60 Hz
HP 1 HP
HP2 1 HP
Insulation Class B
kW 0.75kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 2
Number of Speeds 1
Overload Protection Thermally Protected
Phase 1
Rated Current SF 8.1/16.2
Rated Voltage 115/230
Rotation Clockwise
RPM 3450
Service Factor 1.4
Shaft Diameter 0.625″
Speed 3450
Starting Method
