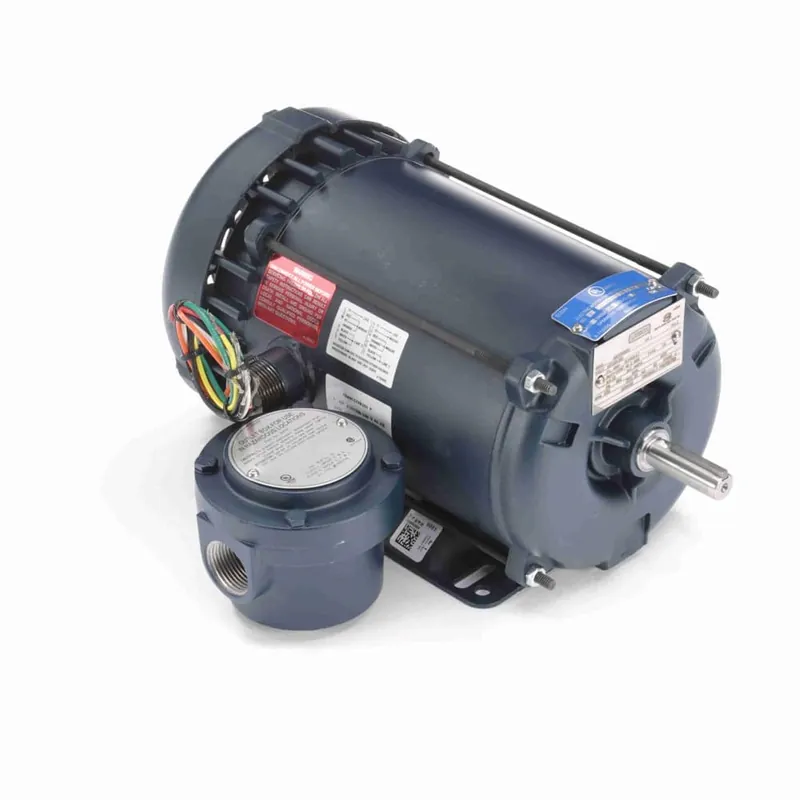

1HP 1PH 56H 4P EXP TEFC 1725 115/208-230V AOL

Description

Product Information

Brand Leeson
Mfr # 110961.00
Wright’s # LSN 110961.00
Country of Origin MEX

Specifications

C Dim 14.08″
Electrical Type Capacitor Start Induction Run
Enclosure EXP TEFC
Full Load Efficiency 72
Frame 56H
Frequency 60 Hz
HP 1 HP
HP2 1 HP
Insulation Class B
kW 0.75kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Rigid Base
Number of Poles 4
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 13.4/6.8-6.7
Rated Voltage 115/208-230
Rotation Selective Counterclockwise
RPM 1725
Service Factor 1
Shaft Diameter 0.625″
Speed 1725
Starting Method
