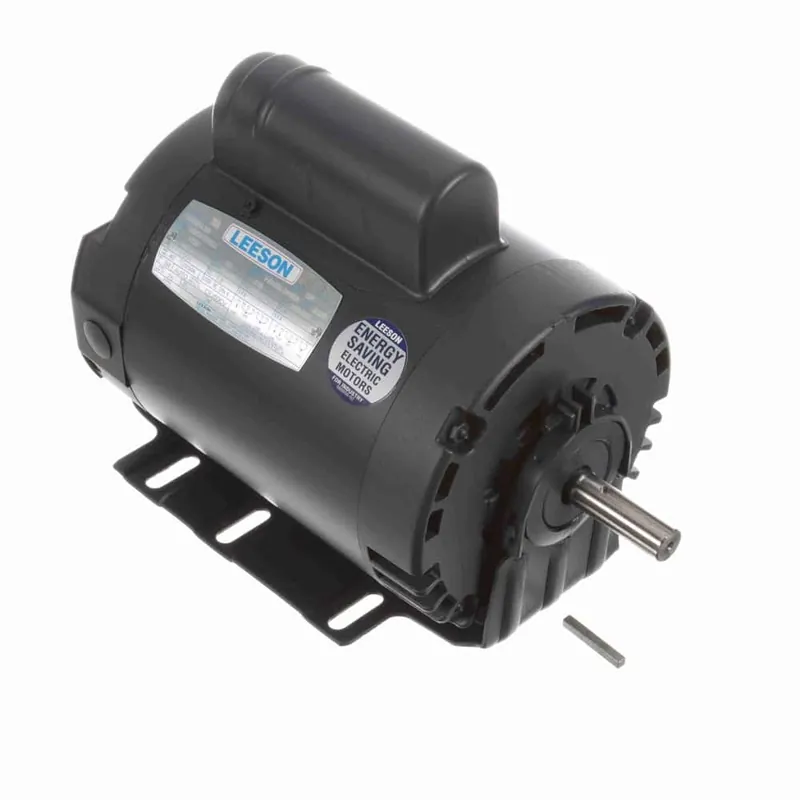

1HP 1PH 56H 4P DP 1725 115/230V AOL

Description

Product Information

Brand Leeson
Mfr # 110054.00
Wright’s # LSN 110054.00
Country of Origin USA

Specifications

C Dim 11.81″
Electrical Type Capacitor Start Induction Run
Enclosure DP
Full Load Efficiency 75
Frame 56H
Frequency 60 Hz
HP 1 HP
HP2 1 HP
Insulation Class B
kW 0.75kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Resilient Base
Number of Poles 4
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 12.8/6.4
Rated Voltage 115/230
Rotation Selective Counterclockwise
RPM 1725
Service Factor 1
Shaft Diameter 0.625″
Speed 1725
Starting Method
