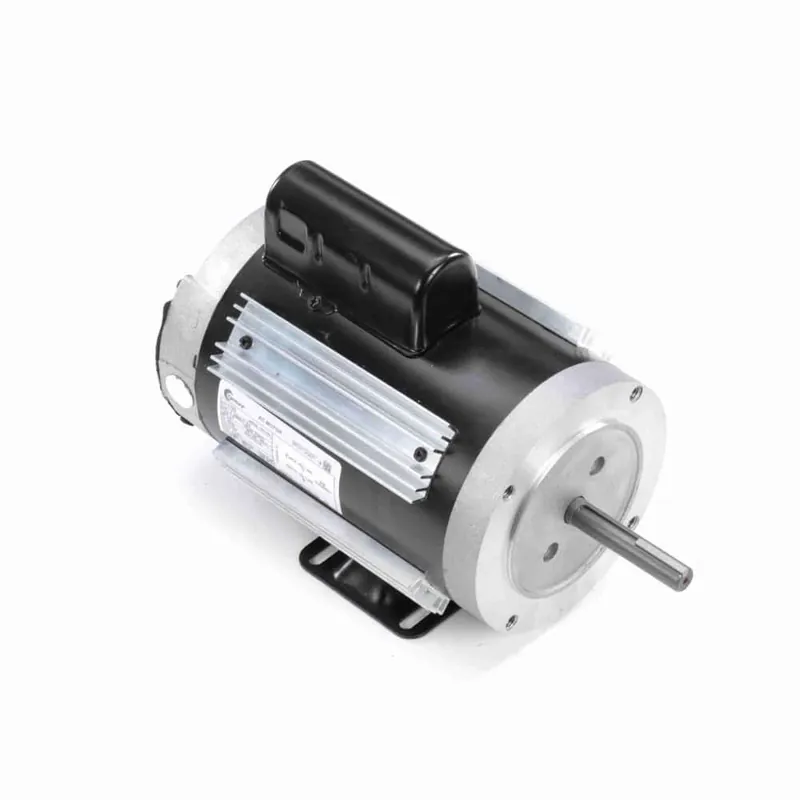

1HP 1PH 56CZ 8P TEAO 850 230V AOL BM

Description

Product Information

Brand Century
Mfr # C783
Wright’s # CEN C783
Country of Origin MEX

Specifications

C Dim 14.22″
Electrical Type Permanent Split Capacitor, Single Or Dual Voltage
Enclosure TEAO
Frame 56CZ
Frequency 60/50 Hz
HP 1 HP
HP2 1 HP
Insulation Class B
kW 0.75kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 8
Number of Speeds 1
Overload Protection Thermally Protected
Phase 1
Rated Current 5.1/5.1
Rated Voltage 230
Rotation Counterclockwise
RPM 850
Service Factor 1
Shaft Diameter 0.625″
Speed 850/725
Starting Method
