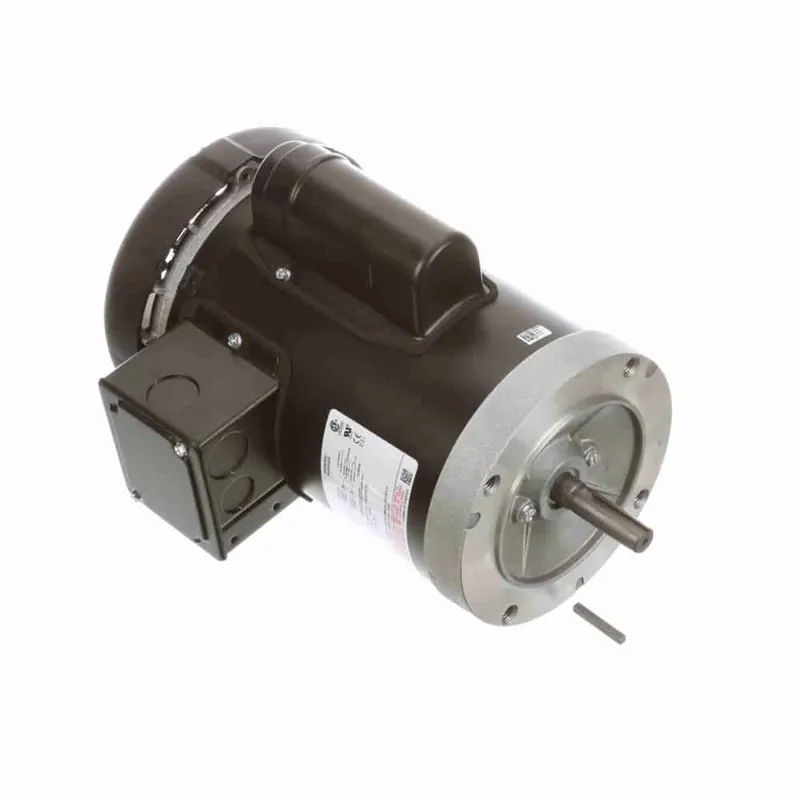

1HP 1PH 56C 4P TEFC 1725 115/208-230V

Description

Product Information

Brand Century
Mfr # C926V1
Wright’s # CEN C926V1
Country of Origin MEX

Specifications

C Dim 13.65″
Electrical Type Capacitor Start Induction Run
Enclosure TEFC
Full Load Efficiency 75.5
Frame 56C
Frequency 60 Hz
HP 1 HP
HP2 1 HP
Insulation Class F
kW 0.75kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 1
Rated Current 12.2/6.2-6.1
Rated Voltage 115/208-230
Rotation Selective Counterclockwise
RPM 1725
Service Factor 1.15
Shaft Diameter 0.625″
Speed 1725
Starting Method
