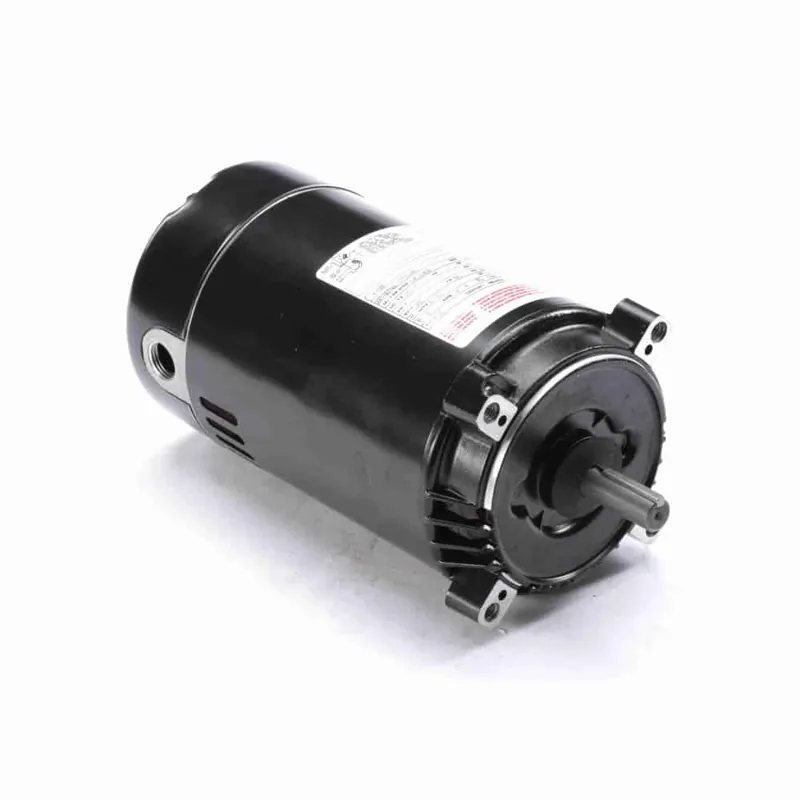

1HP 1PH 56C 2P ODP 3450 115/230V AOL JP

Description

Product Information

Brand Century
Mfr # K1102
Wright’s # CEN K1102
Country of Origin MEX

Specifications

C Dim 12.06″
Electrical Type Capacitor Start
Enclosure ODP
Frame 56C
Frequency 60 Hz
HP 1 HP
HP2 1 HP
Insulation Class B
kW 0.75kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 2
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 8.1/16.2
Rated Voltage 115/230
Rotation Reversible
RPM 3450
Service Factor 1.4
Shaft Diameter 0.625″
Speed 3450
Starting Method
