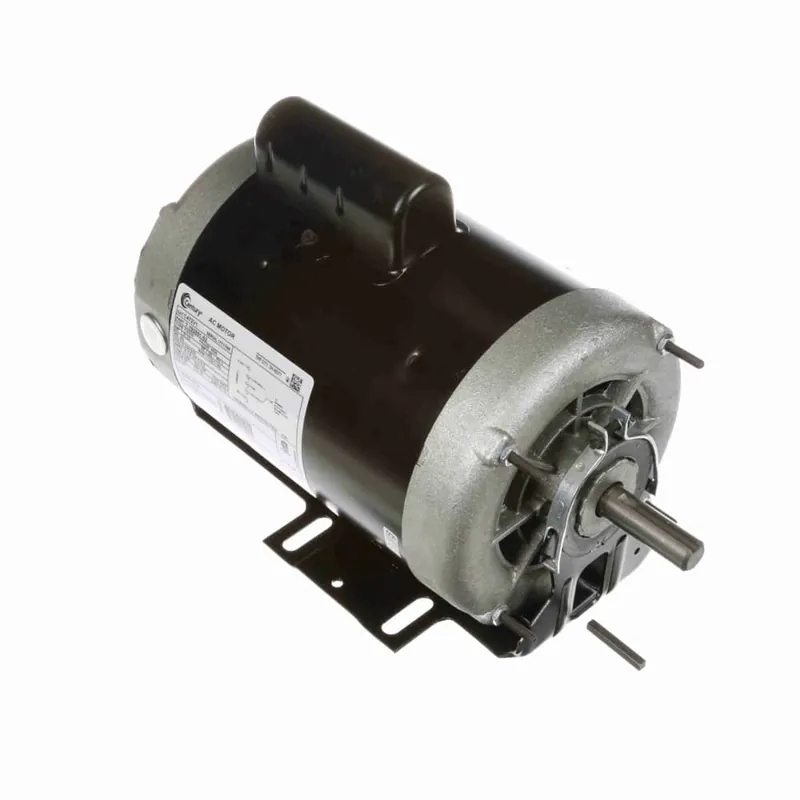

1HP 1PH 56 ODP 2spd 1725 2W-VT 208/230V BM

Description

Product Information

Brand Century
Mfr # C472V1
Wright’s # CEN C472V1
Country of Origin MEX

Specifications

C Dim 12.69″
Electrical Type Capacitor Start, Induction Run, Special Service, Multi-Speed
Enclosure ODP
Frame 56
Frequency 60 Hz
HP 1 HP
HP2 1-1/3 HP
Insulation Class B
kW 0.75kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 4/6
Number of Speeds 2-2-VT
Overload Protection Thermally Protected
Phase 1
Rated Current 6.3-6.0/3.3-3.8
Rated Voltage 208/230
Rotation Reversible Counterclockwise
RPM 1725
Service Factor 1
Shaft Diameter 0.625″
Speed 1725/1140
Starting Method
