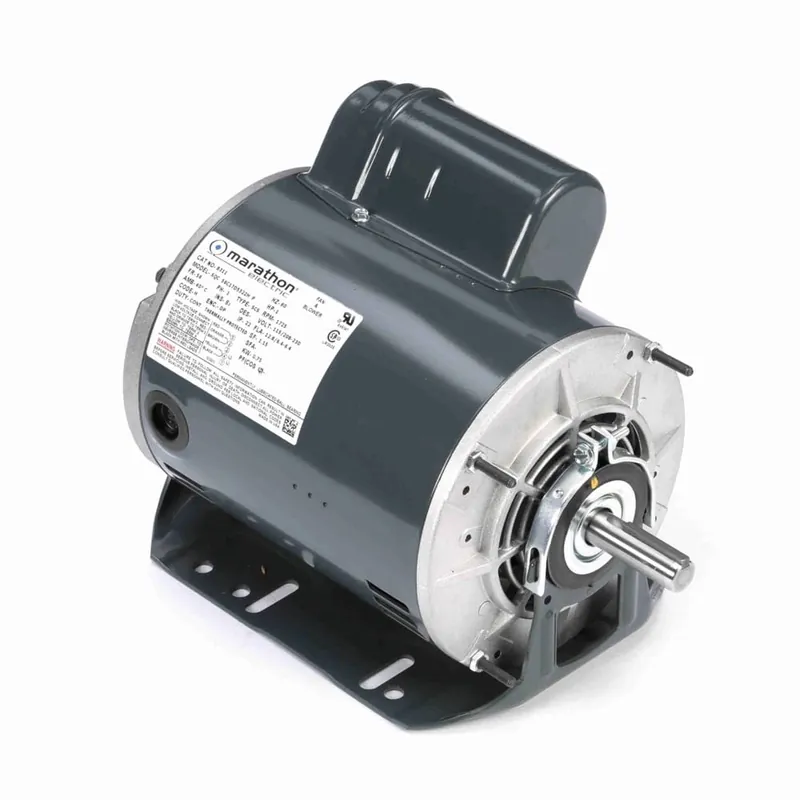

1HP 1PH 56 ODP 1800 115/208-230V AOL RB

Description

Product Information

Brand Marathon
Mfr # B311
Wright’s # MAR B311
Country of Origin MEX

Specifications

C Dim 11.35″
Electrical Type Capacitor Start Induction Run
Enclosure ODP
Full Load Efficiency 72
Frame 56
Frequency 60 Hz
HP 1 HP
HP2 1 HP
Insulation Class B
kW 0.75kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Resilient Base – Extended Studs
Number of Poles 4
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 12.8/6.4-6.4
Rated Voltage 115/208-230
Rotation Selective Counterclockwise
RPM 1725
Service Factor 1.15
Shaft Diameter 0.625″
Speed 1725
Starting Method
