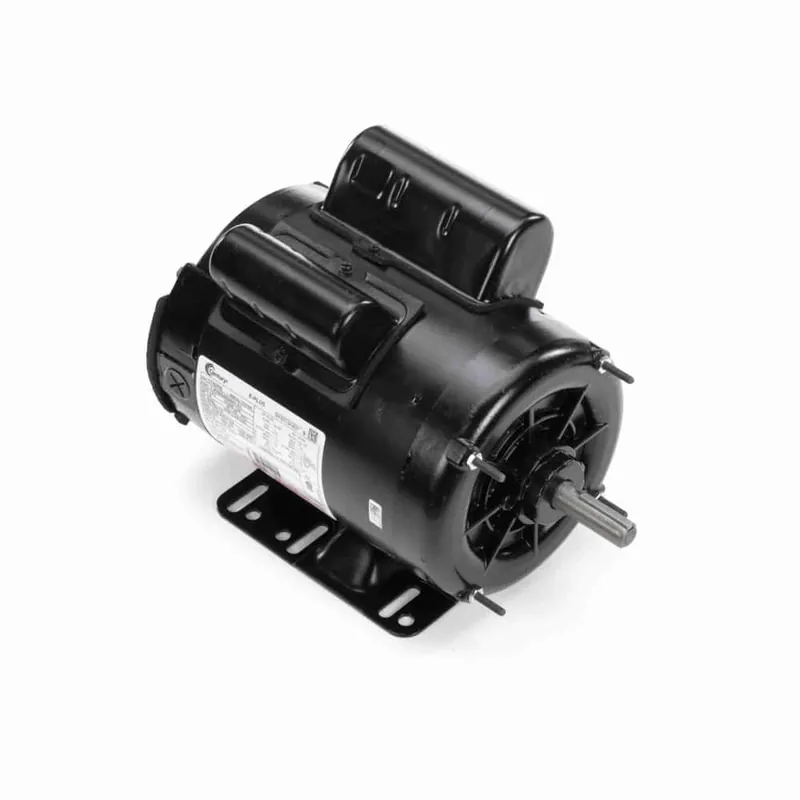

1HP 1PH 56 4P TENV 1725 115/230V AOL

Description

Product Information

Brand Century
Mfr # C782RB
Wright’s # CEN C782RB
Country of Origin MEX

Specifications

C Dim 12.19″
Electrical Type Capacitor Start, Capacitor Run, Low Starting Torque, Single Or Dual Voltage
Enclosure TENV
Frame 56
Frequency 60/50 Hz
HP 1 HP
HP2 1 HP
Insulation Class B
kW 0.75kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection Thermally Protected
Phase 1
Rated Current 4.3/8.6//5.2/10.4
Rated Voltage 115/230
Rotation Reversible Clockwise
RPM 1725
Service Factor 1.4
Shaft Diameter 0.625″
Speed 1725/1425
Starting Method
