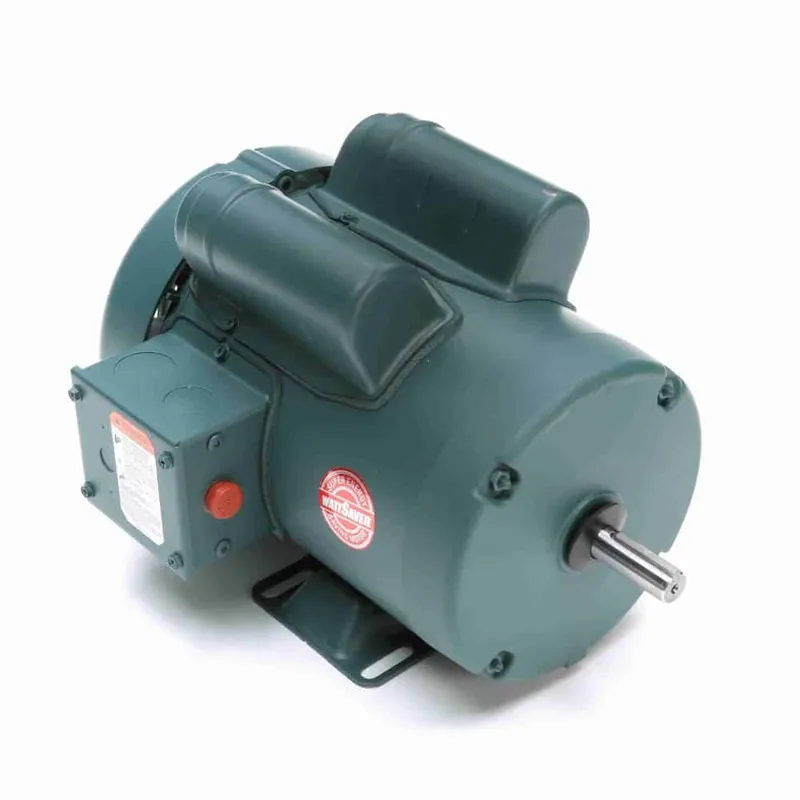

1HP 1PH 56 4P TEFC 1725 115/230V MOL

Description

Product Information

Brand Leeson
Mfr # 113768.00
Wright’s # LSN 113768.00
Country of Origin USA

Specifications

C Dim 12.49″
Electrical Type Capacitor Start Capacitor Run
Enclosure TEFC
Full Load Efficiency 83
Frame 56
Frequency 60 Hz
HP 1 HP
HP2 1 HP
Insulation Class B
kW 0.75kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Rigid Base
Number of Poles 4
Number of Speeds 1
Overload Protection Manual
Phase 1
Rated Current 8.4/4.2
Rated Voltage 115/230
Rotation Selective Counterclockwise
RPM 1725
Service Factor 1.15
Shaft Diameter 0.625″
Speed 1725
Starting Method
