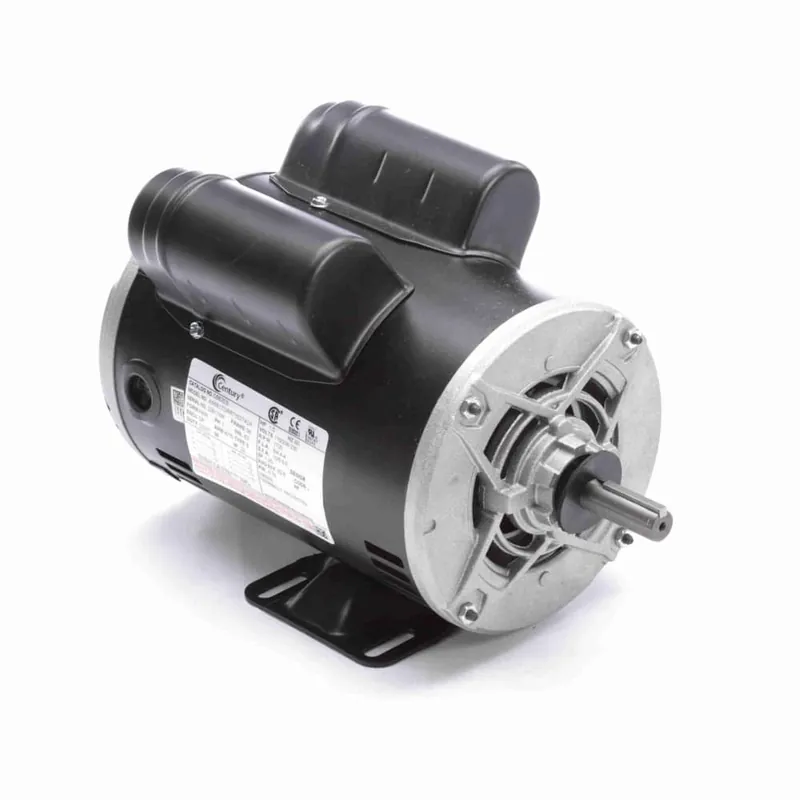

1HP 1PH 56 4P ODP 1725 115/208-230V AOL

Description

Product Information

Brand Century
Mfr # C682ES
Wright’s # CEN C682ES
Country of Origin MEX

Specifications

C Dim 12.49″
Electrical Type Capacitor Start Capacitor Run
Enclosure ODP
Full Load Efficiency 82.6
Frame 56
Frequency 60 Hz
HP 1 HP
HP2 1 HP
Insulation Class B
kW 0.75kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection Thermally Protected
Phase 1
Rated Current 8/4.4-4
Rated Voltage 115/208-230
Rotation Selective Counterclockwise
RPM 1725
Service Factor 1.25
Shaft Diameter 0.625″
Speed 1725
Starting Method
