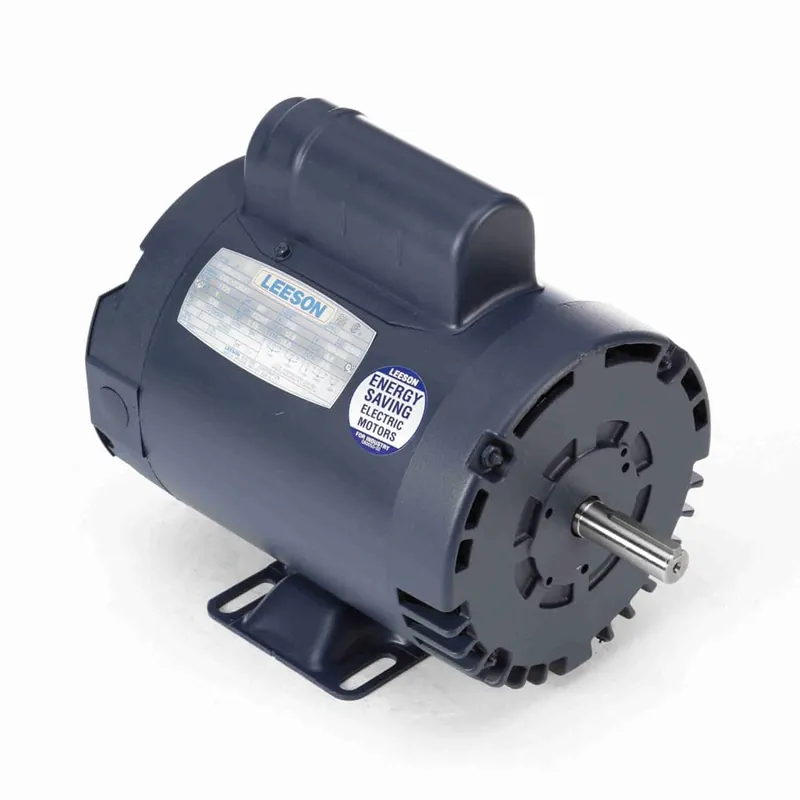

1HP 1PH 56 4P DP 1725 115/208-230V

Description

Product Information

Brand Leeson
Mfr # 110004.00
Wright’s # LSN 110004.00
Country of Origin USA

Specifications

C Dim 10.88″
Electrical Type Capacitor Start Induction Run
Enclosure DP
Full Load Efficiency 75
Frame 56
Frequency 60 Hz
HP 1 HP
HP2 1 HP
Insulation Class B
kW 0.75kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Rigid Base
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 1
Rated Current 12.8/6.5-6.4
Rated Voltage 115/208-230
Rotation Selective Counterclockwise
RPM 1725
Service Factor 1.15
Shaft Diameter 0.625″
Speed 1725
Starting Method
