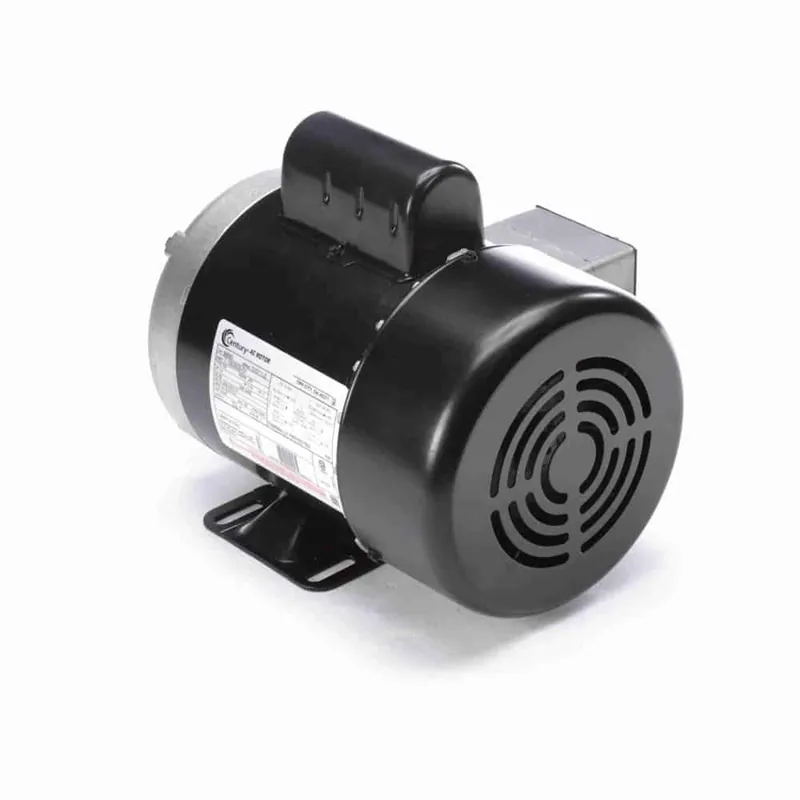

1HP 1PH 56 2P TEFC 3450 115/208-230V AOL

Description

Product Information

Brand Century
Mfr # B695
Wright’s # CEN B695
Country of Origin MEX

Specifications

C Dim 12.21″
Electrical Type Capacitor Start, Induction Run, Single Or Dual Voltage
Enclosure TEFC
Frame 56
Frequency 60 Hz
HP 1 HP
HP2 1 HP
Insulation Class B
kW 0.75kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 2
Number of Speeds 1
Overload Protection Thermally Protected
Phase 1
Rated Current 6.1-6.0/12.0
Rated Voltage 115/208-230
Rotation Reversible Counterclockwise
RPM 3450
Service Factor 1.15
Shaft Diameter 0.625″
Speed 3450
Starting Method
