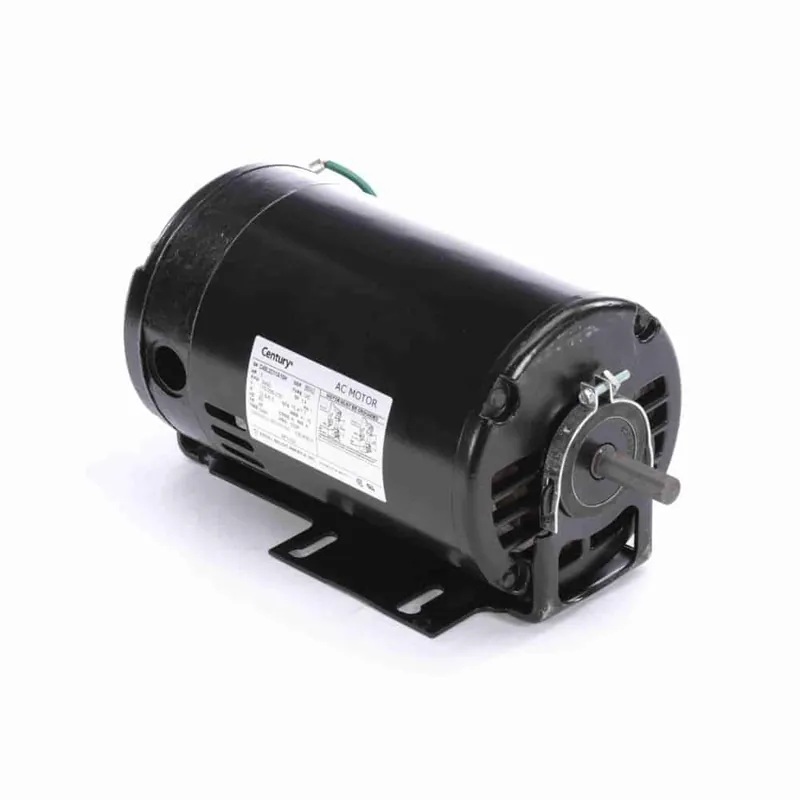

1HP 1PH 5.6″ ODP 3450 115/208-230V BM

Description

Product Information

Brand Century
Mfr # BF1102
Wright’s # CEN BF1102
Country of Origin MEX

Specifications

C Dim 11.56″
Electrical Type Capacitor Start
Enclosure ODP
Frame 48
Frequency 60 Hz
HP 1 HP
HP2 1 HP
Insulation Class A
kW 0.75kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 2
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 12.6/6.3
Rated Voltage 115/208-230
Rotation Reversible
RPM 3450
Service Factor 1.4
Shaft Diameter 0.5″
Speed 3450
Starting Method
