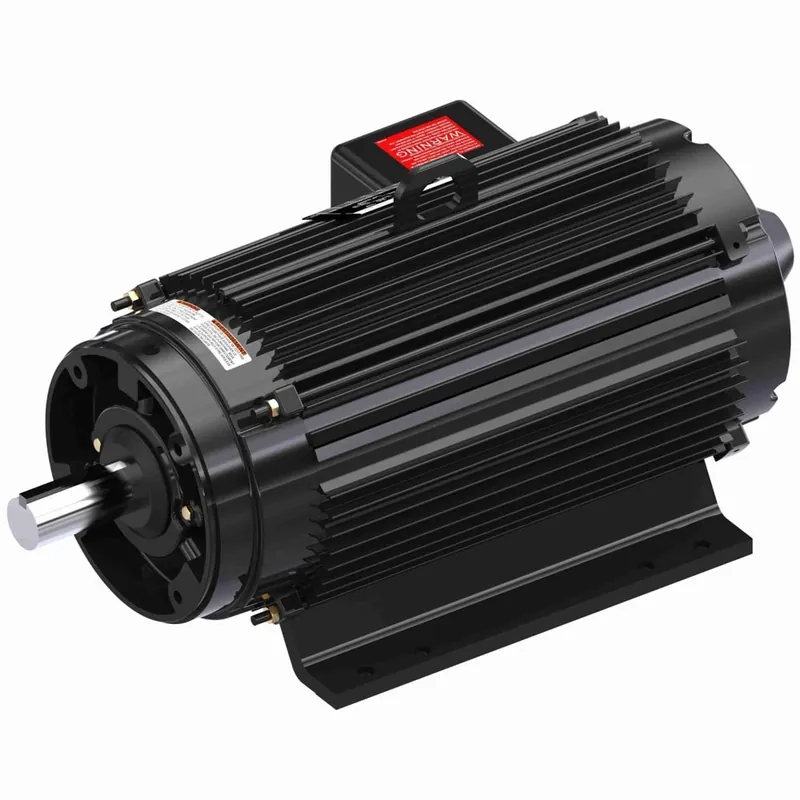

15HP 3PH 254TC 4P TENV 1800 230/460V TS WB INV
Description
Product Information
Brand Marathon
Sub-Brand Black Max® Inverter Duty
Mfr # Y549
Wright’s # MAR Y549
Country of Origin USA
Specifications
C Dim 26.87″
Electrical Type Squirrel Cage Inverter Duty
Enclosure ODP
Full Load Efficiency 91.7
Frame 254TC
Frequency 60 Hz
HP 15 HP
HP2 15 HP
Insulation Class H
kW 11.2kW
Material Aluminum
MaAmbient 40°C
Mounting Type Rigid Base
Number of Poles 4
Number of Speeds 1
Overload Protection Thermostat
Phase 3
Rated Current 40.0/20.0
Rated Voltage 230/460
Rotation Reversible
RPM 1765
Service Factor 1
Shaft Diameter 1.625″
Speed 1765
Starting Method
