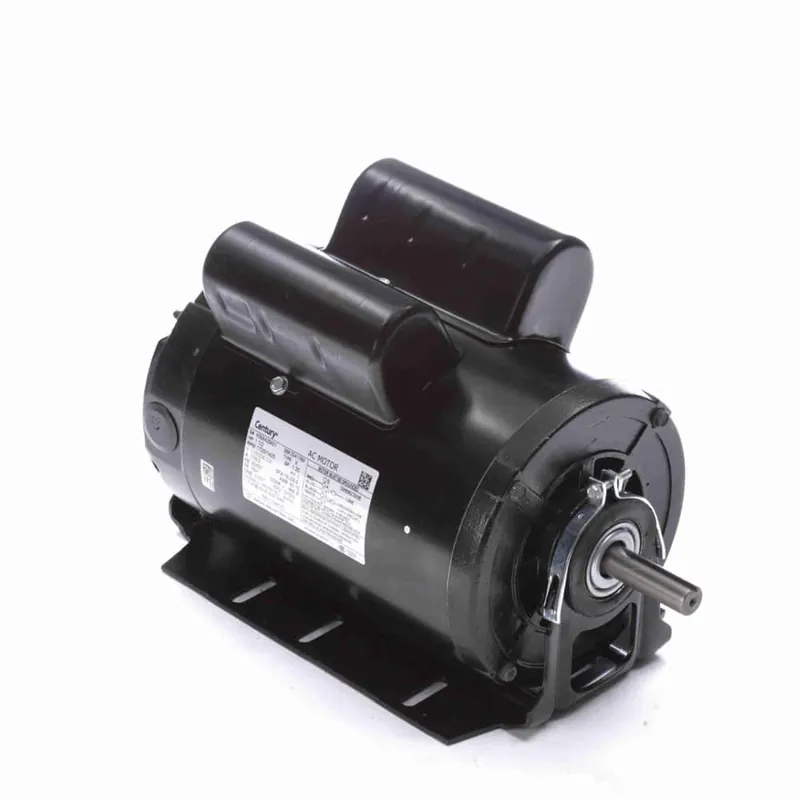

11/2HP 1PH 56H ODP 1725 115/208-230V BM

Description

Product Information

Brand Century
Mfr # RB1154AV1
Wright’s # CEN RB1154AV1
Country of Origin MEX

Specifications

C Dim 12.84″
Electrical Type Capacitor Start Capacitor Run
Enclosure ODP
Frame 56H
Frequency 60/50 Hz
HP 1.5 HP
HP2 11/2 HP
Insulation Class B
kW 1.1kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 17/8.5
Rated Voltage 115/208-230
Rotation Reversible
RPM 1725
Service Factor 1.2
Shaft Diameter 0.625″
Speed 1725/1425
Starting Method
