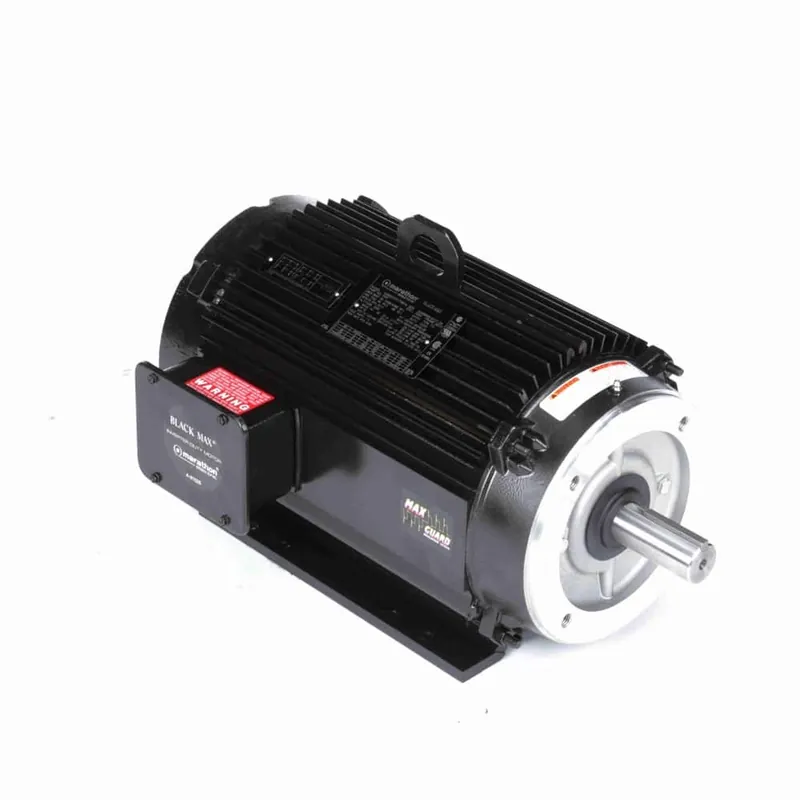

10HP 3PH 215TC 4P TENV 1800 230/460V TS WB INV

Description

Product Information

Brand Marathon
Sub-Brand Black Max® Inverter Duty
Mfr # Y547
Wright’s # MAR Y547
Country of Origin USA

Specifications

C Dim 23.04″
Electrical Type Squirrel Cage Inverter Duty
Enclosure ODP
Full Load Efficiency 90.2
Frame 215TC
Frequency 60 Hz
HP 10 HP
HP2 10 HP
Insulation Class F
kW 7.5kW
Material Aluminum
MaAmbient 40°C
Mounting Type Rigid Base
Number of Poles 4
Number of Speeds 1
Overload Protection Thermostat
Phase 3
Rated Current 27.0/13.5
Rated Voltage 230/460
Rotation Reversible
RPM 1774
Service Factor 1
Shaft Diameter 1.375″
Speed 1774
Starting Method
