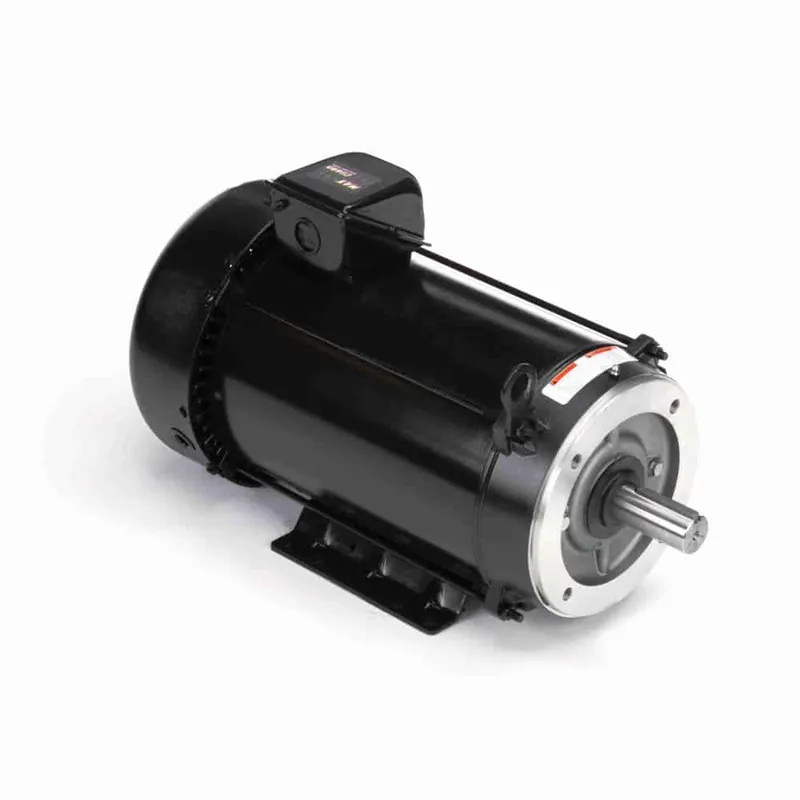

10HP 3PH 215TC 4P TEFC 1800 230/460V WB INV

Description

Product Information

Brand Marathon
Sub-Brand microMAX™ Inverter Duty
Mfr # Y996
Wright’s # MAR Y996
Country of Origin USA

Specifications

C Dim 22.22″
Electrical Type Squirrel Cage Inverter Duty
Enclosure ODP
Full Load Efficiency 91
Frame 215TC
Frequency 60 Hz
HP 10 HP
HP2 10 HP
Insulation Class H
kW 7.5kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Bolt-on Base
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 3
Rated Current 27.6/13.8
Rated Voltage 230/460
Rotation Reversible
RPM 1770
Service Factor 1
Shaft Diameter 1.375″
Speed 1770
Starting Method
