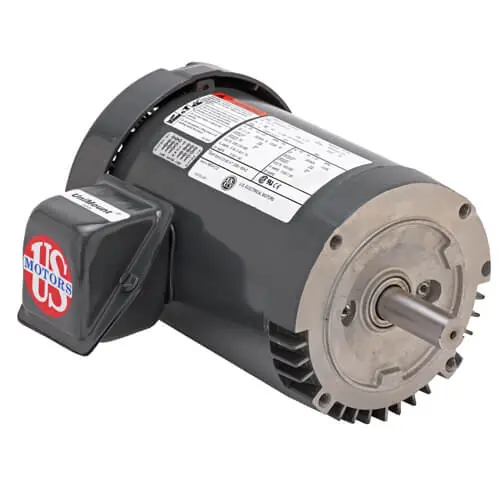

10HP 3PH 215TC 3600 TEFC 230/460V NB

Description

Product Information

Brand US Motors
Mfr # U10P1DCR
Wright’s # USM U10P1DCR
Country of Origin MEX

Specifications

C Dim 20.1″
Electrical Type Polyphase
Enclosure TEFC
Frame 215TC
Frequency 60/50 Hz
HP 10 HP
HP2 10 HP
Insulation Class F
kW 7.46kW
MaAmbient 40°C
Mounting Type HORZ-FOOTLESS
Number of Poles 2
Number of Speeds 1
Overload Protection None
Phase 3
Rated Current 24.1/12
Rated Voltage 230/460V
RPM 3530
Service Factor 1.25
