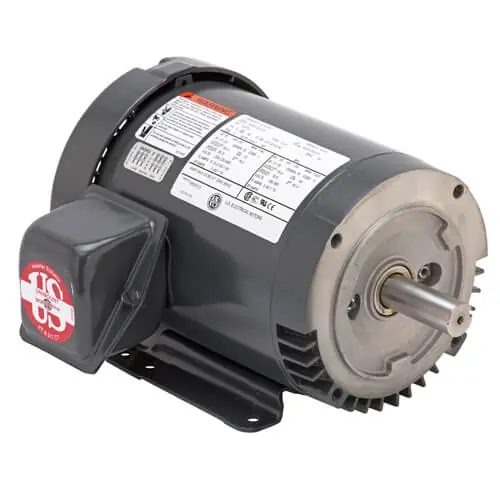

10HP 3PH 215TC 1800 TEFC 208-230/460V

Description

Product Information

Brand US Motors
Mfr # U10P2DC
Wright’s # USM U10P2DC
Country of Origin MEX

Specifications

C Dim 20.3″
Electrical Type Polyphase
Enclosure TEFC
Frame 215TC
Frequency 60/50 Hz
HP 10 HP
HP2 10 HP
Insulation Class F
kW 7.46kW
MaAmbient 40°C
Mounting Type HORZ-FOOTED
Number of Poles 4
Number of Speeds 1
Overload Protection None
Phase 3
Rated Current 26.5-23.9/12
Rated Voltage 208-230/460V
RPM 1760
Service Factor 1.25
