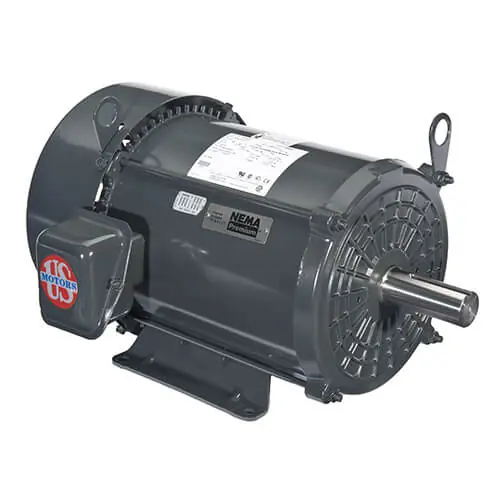

10HP 3PH 215TC 1800 TEFC 208-230/460V

Description

Product Information

Brand US Motors
Mfr # S10P2AC
Wright’s # USM S10P2AC
Country of Origin MEX

Specifications

C Dim 19.4″
Electrical Type Polyphase
Enclosure TEFC
Frame 215TC
Frequency 60 Hz
HP 10 HP
HP2 10 HP
Insulation Class F
kW 7.46kW
MaAmbient 40°C
Mounting Type HORZ-FOOTED
Number of Poles 4
Number of Speeds 1
Overload Protection None
Phase 3
Rated Current 26.6-24/12
Rated Voltage 208-230/460V
RPM 1760
Service Factor 1.15
