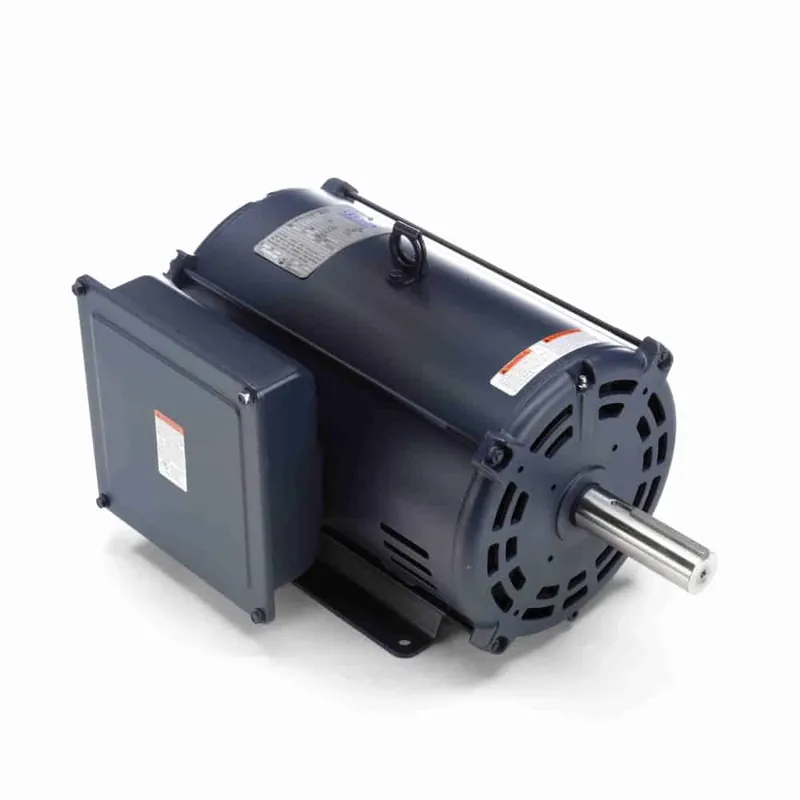

10HP 1PH 215TZ 4P DP 1745 230V Dryer

Description

Product Information

Brand Leeson
Mfr # 141430.00
Wright’s # LSN 141430.00
Country of Origin USA

Specifications

C Dim 14.79″
Electrical Type Capacitor Start Capacitor Run
Enclosure DP
Full Load Efficiency 86.5
Frame 215TZ
Frequency 60 Hz
HP 10 HP
HP2 10 HP
Insulation Class F
kW 7.5kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Rigid Base
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 1
Rated Current 39.0
Rated Voltage 230
Rotation Selective Counterclockwise
RPM 1745
Service Factor 1.25
Shaft Diameter 1.375″
Speed 1745
Starting Method
