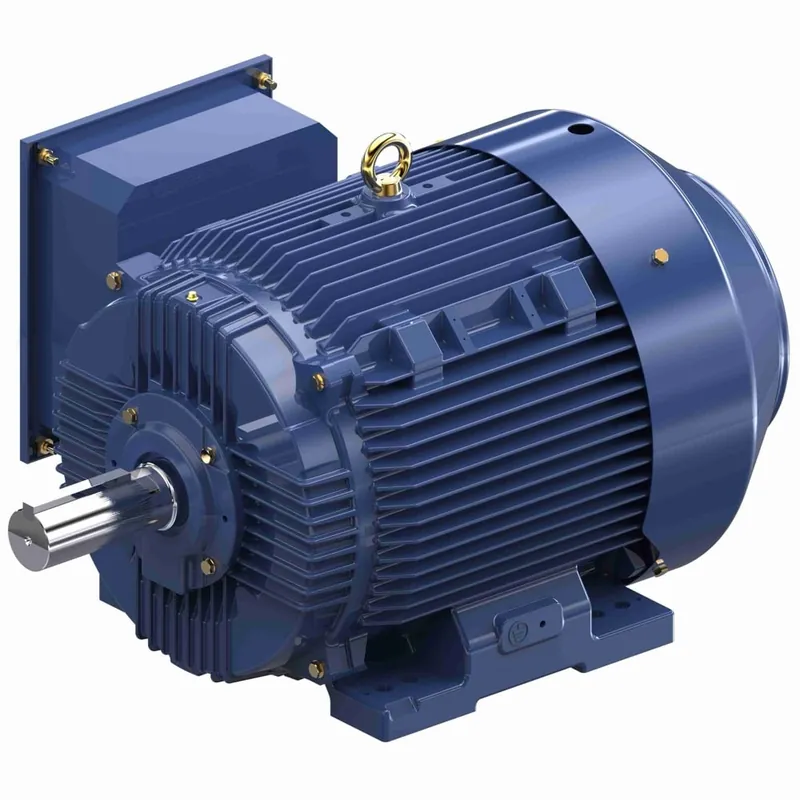

100HP 3PH 405T 4P TEFC 1800 230/460V WB

Description

Product Information

Brand Marathon
Sub-Brand Globetrotter®
Mfr # GT1046A
Wright’s # MAR GT1046A
Country of Origin MEX

Specifications

C Dim 38.77″
Electrical Type Squirrel Cage Inverter Rated
Enclosure ODP
Full Load Efficiency 95.4
Frame 405T
Frequency 60 Hz
HP 100 HP
HP2 100 HP
Insulation Class F
kW 75kW
Material Cast Iron
MaAmbient 40°C
Mounting Type Rigid Base
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 3
Rated Current 226/113 & 206/103
Rated Voltage 230/460
Rotation Reversible
RPM 1785
Service Factor 1.15
Shaft Diameter 2.875″
Speed 1785 & 1485
Starting Method
