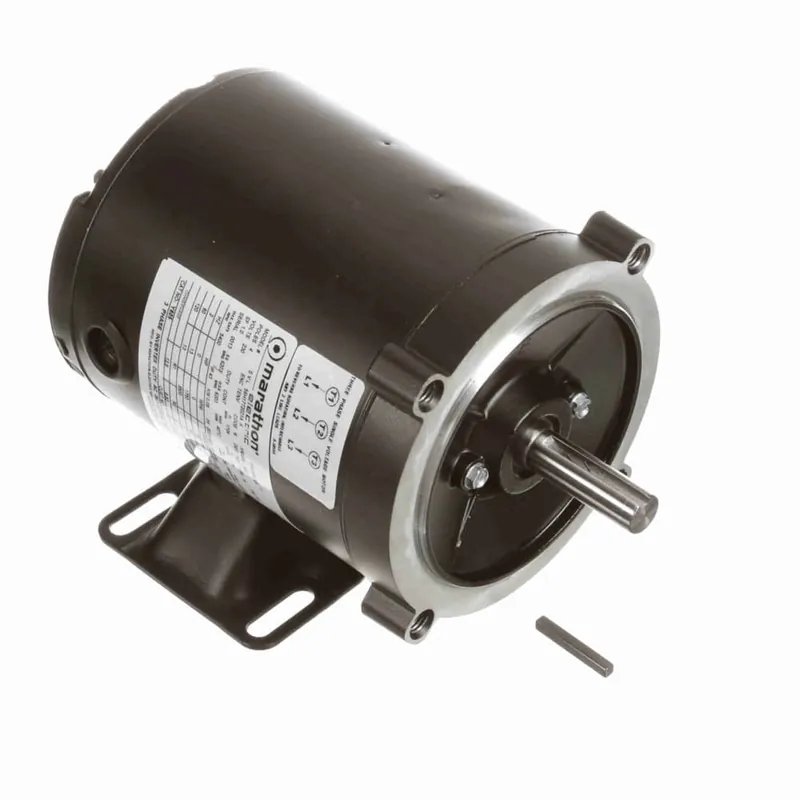

1/8HP 3PH 56C 4P TENV 1800 230V WB INV

Description

Product Information

Brand Marathon
Sub-Brand microMAX™ Inverter Duty
Mfr # Y605
Wright’s # MAR Y605
Country of Origin MEX

Specifications

C Dim 9.16″
Electrical Type Squirrel Cage Inverter Duty
Enclosure ODP
Full Load Efficiency 65.5
Frame 56C
Frequency 60 Hz
HP 0.13 HP
HP2 1/8 HP
Insulation Class H
kW 0.09kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Rigid Base
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 3
Rated Current 0.66
Rated Voltage 230
Rotation Reversible
RPM 1725
Service Factor 1
Shaft Diameter 0.625″
Speed 1725
Starting Method
