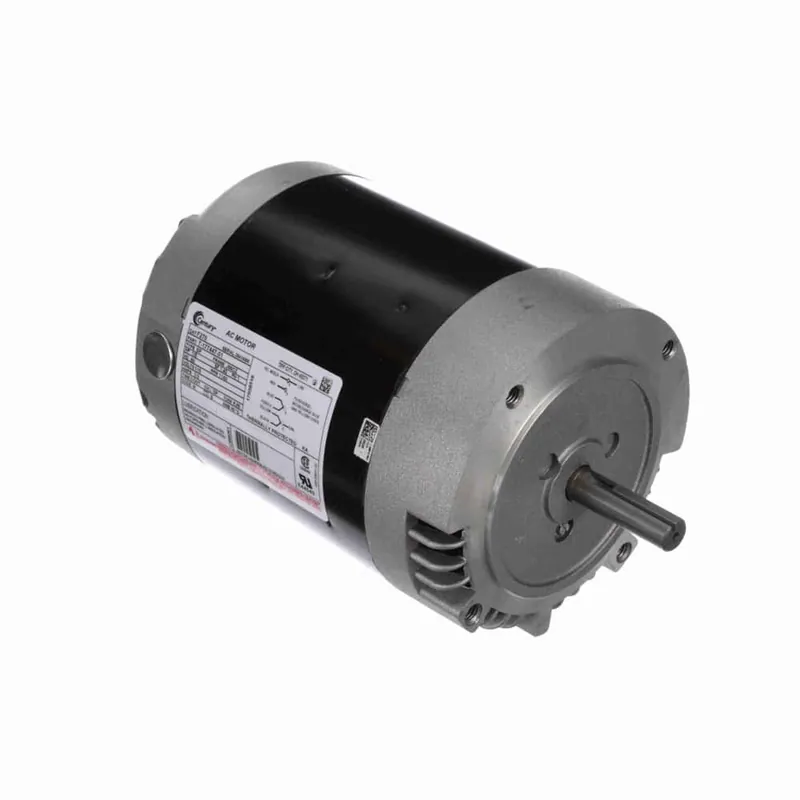

1/8HP 1PH 56CZ ODP 1140 115V

Description

Product Information

Brand Century
Mfr # F270
Wright’s # CEN F270
Country of Origin MEX

Specifications

C Dim 11.25″
Electrical Type Split Phase, Induction Run, Single Or Dual Voltage
Enclosure ODP
Frame 56CZ
Frequency 60 Hz
HP 0.13 HP
HP2 1/8 HP
Insulation Class B
kW 0.1kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 6
Number of Speeds 1
Overload Protection Thermally Protected
Phase 1
Rated Current 3
Rated Voltage 115
Rotation Reversible Counterclockwise
RPM 1140
Service Factor 1.4
Shaft Diameter 0.625″
Speed 1140
Starting Method
