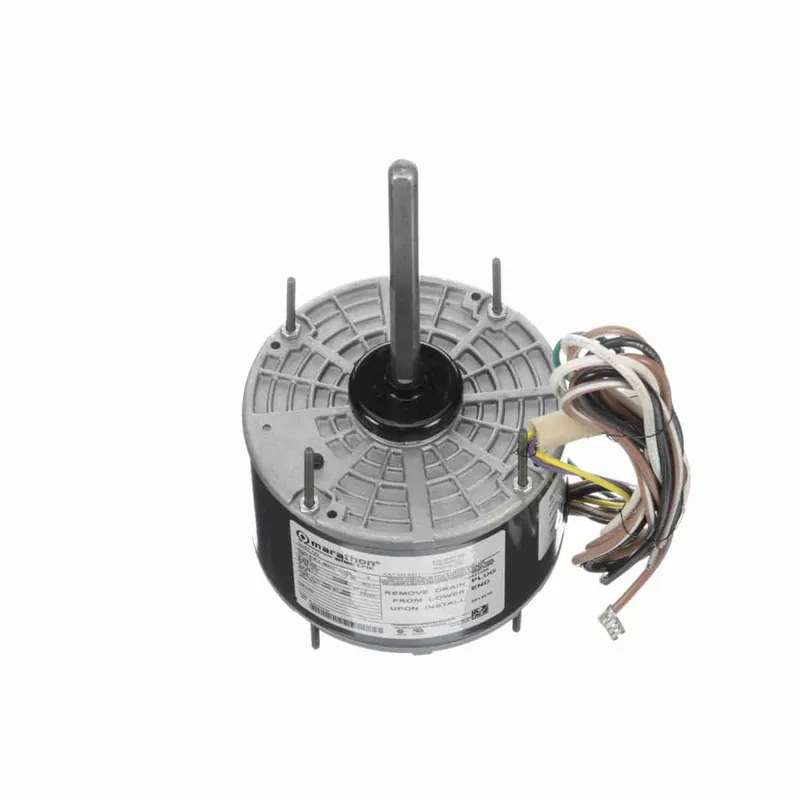

1/6HP PSC 48Z 6P TEAO 1075 208-230V AOL NB CF

Description

Product Information

Brand Marathon
Mfr # X411
Wright’s # MAR X411
Country of Origin MEX

Specifications

C Dim 10.25″
Electrical Type Permanent Split Capacitor
Enclosure ODP
Full Load Efficiency 57.5
Frame 48Z
Frequency 60 Hz
HP 0.17 HP
HP2 1/6 HP
Insulation Class B
kW 0.13kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Round – Extended Studs
Number of Poles 6
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 1.3-1.1
Rated Voltage 208-230
Rotation Selective Counterclockwise
RPM 1075
Service Factor 1
Shaft Diameter 0.5″
Speed 1075
Starting Method
