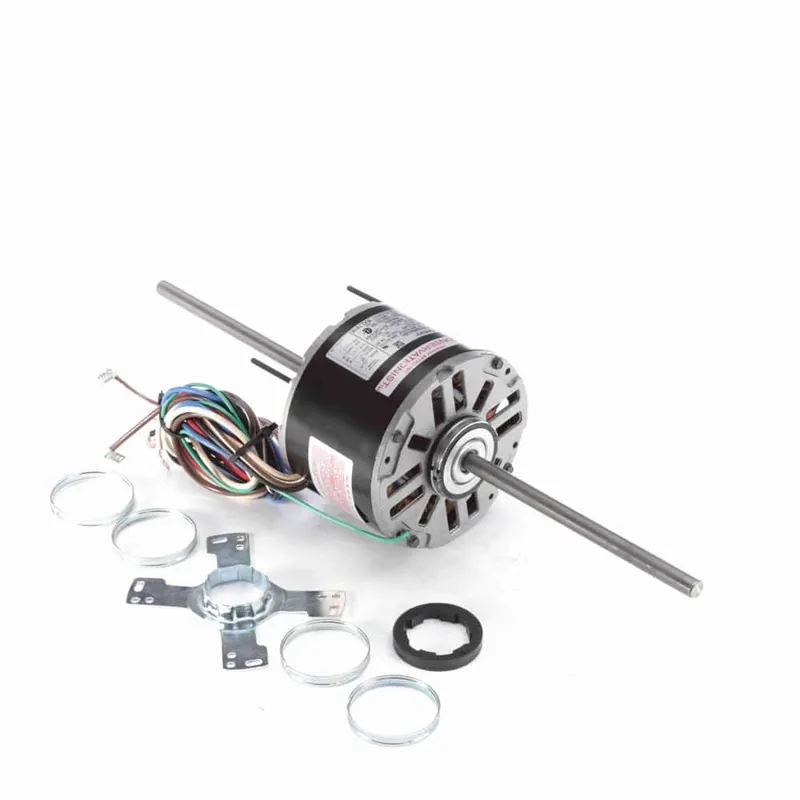

1/6HP PSC 48Y TE 3spd 1075 CCWSE 115V 5uF

Description

Product Information

Brand Century
Mfr # RAL1016
Wright’s # CEN RAL1016

Specifications

C Dim 20″
Electrical Type Permanent Split Capacitor
Enclosure TEAO
Frame 48Y
Frequency 60 Hz
HP 0.17 HP
HP2 1/6 HP
Insulation Class A
kW 0.13kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 6
Number of Speeds 3
Overload Protection Automatic
Phase 1
Rated Current 2.2
Rated Voltage 115
Rotation Counterclockwise Lead End
RPM 1075
Service Factor 1
Shaft Diameter 0.5″
Speed 1075
Starting Method
