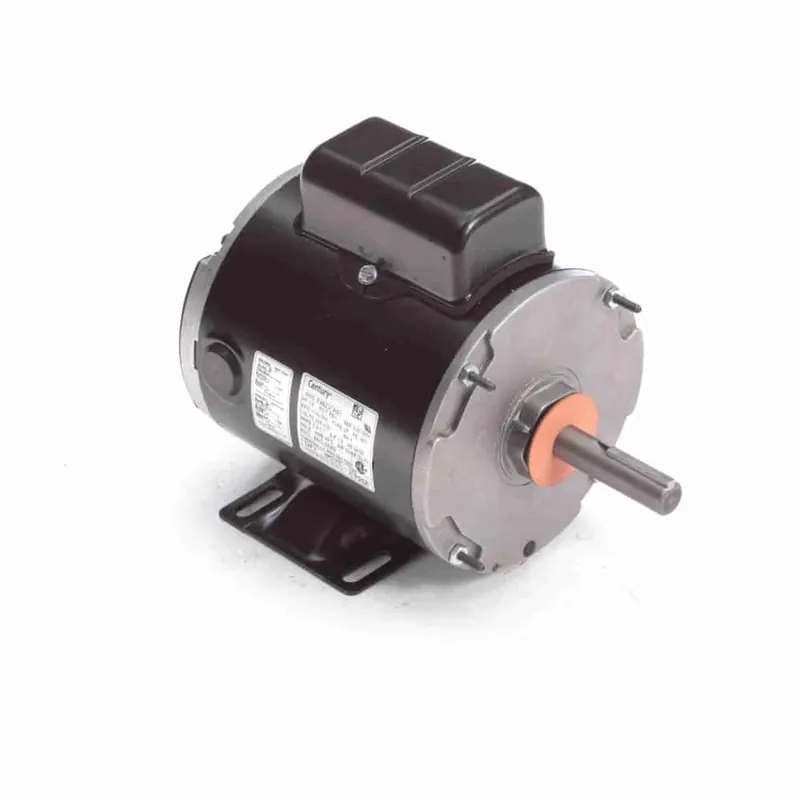

1/6HP PSC 48Y TE 2spd 1140 208-230V 4uF-inc

Description

Product Information

Brand Century
Mfr # C720A
Wright’s # CEN C720A

Specifications

C Dim 9.55″
Electrical Type Permanent Split Capacitor
Enclosure TEAO
Frame 48Y
Frequency 60 Hz
HP 0.17 HP
HP2 1/6 HP
Insulation Class B
kW 0.13kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 6
Number of Speeds 2
Overload Protection Automatic
Phase 1
Rated Current 0.9/1.1
Rated Voltage 208-230
Rotation Reversible
RPM 1140
Service Factor 1
Shaft Diameter 0.625″
Speed 1140/950
Starting Method
