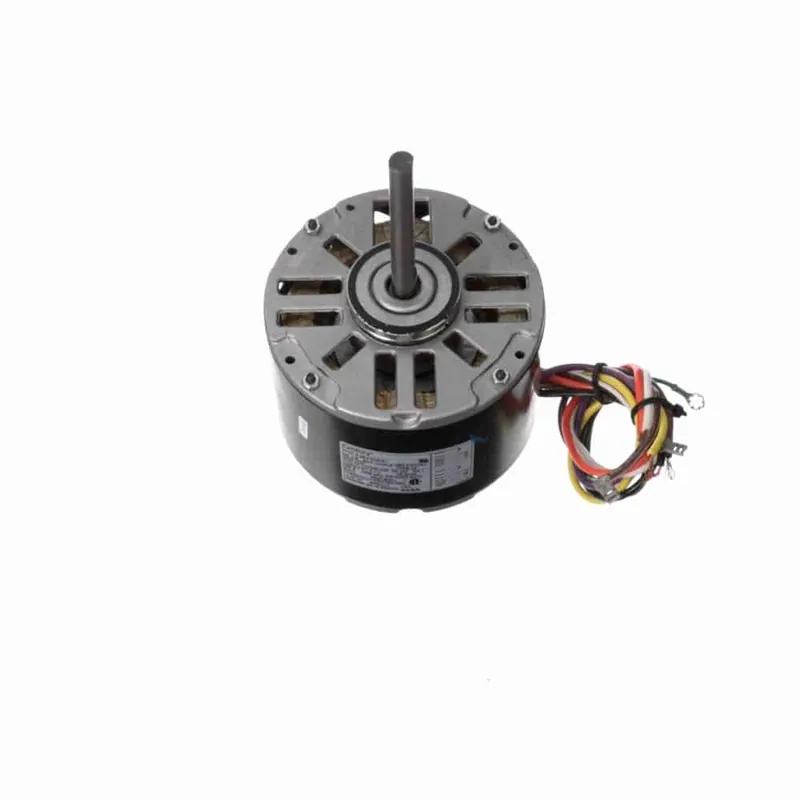

1/6HP PSC 48Y TE 1550 CWSE 115/208-230V 10uF BM

Description

Product Information

Brand Century
Mfr # 9699
Wright’s # CEN 9699
Country of Origin MEX

Specifications

C Dim 8.86″
Electrical Type Permanent Split Capacitor
Enclosure TEAO
Frame 48Y
Frequency 50 Hz
HP 0.17 HP
HP2 1/6 HP
Insulation Class B
kW 0.13kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 2.8/1.4-1.4
Rated Voltage 115/208-230
Rotation Counterclockwise Lead End
RPM 1550
Service Factor 1
Shaft Diameter 0.5″
Speed 1550
Starting Method
